LFP battery 10C

for UPS

Overview

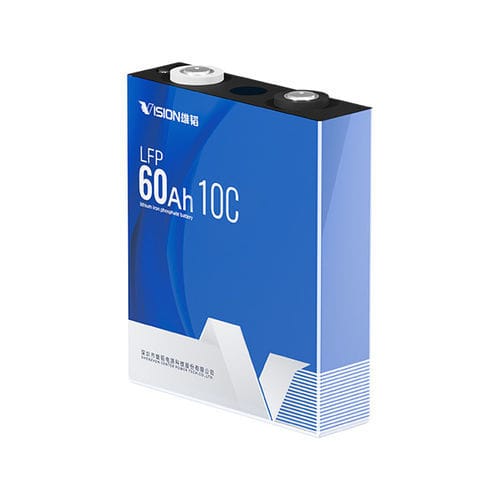

Vision LFP-60Ah 10C cell is a lithium iron phosphate (LFP) battery cell engineered for UPS and backup power applications. It combines high discharge capability at 10C with enhanced safety measures including a flame-retardant separator and an integrated fuse to minimize thermal and electrical risks. The cell has passed rigorous abuse tests (including nail penetration) without swelling, smoke, fire, or explosion, supporting reliable operation in demanding installations.

Application Scenarios

• UPS and backup power systems

Key Features

• Safety-focused design: passes nail penetration tests without swelling, smoke, fire, or explosion.
• Flame-retardant technology: separator and electrolyte formulation reduce fire/explosion risk.
• Built-in fuse: rapid current interruption under abnormal conditions to prevent overheating.
• Fast discharge & high power density: supports continuous discharge up to 10C for high-demand backup loads.
• Customization options: configurable cell performance parameters and mechanical design to suit system requirements.
• Environmental considerations: designed for reduced environmental impact and integration into sustainable energy solutions.

Technical specifications

• Chemistry: Lithium Iron Phosphate (LFP)
• Commercial designation: 60Ah 10C High-Safety Cell
• Nominal capacity: 60Ah
• Continuous discharge capability: up to 10C
• Safety features: flame-retardant separator, flame-retardant electrolyte formulation, built-in fuse
• Abuse performance: passes nail penetration without swelling, smoke, fire, or explosion
• Primary application: UPS and backup power systems
• Design priorities: increased power density, system reliability, BMS compatibility for lifecycle monitoring
• Customization: cell performance and physical design options available
