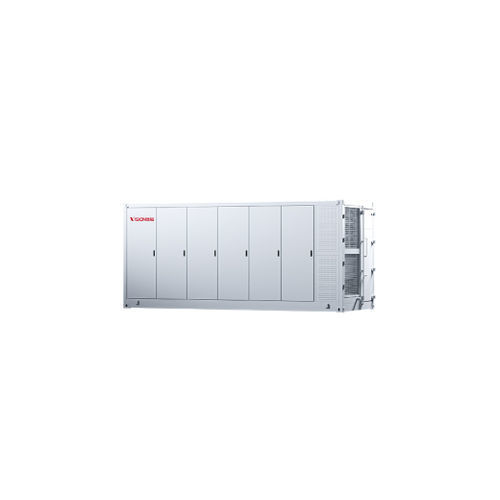

LiFePO4 energy storage system CBES 0.5C

containerizedliquid-cooled

Overview
The 0.5C Liquid-Cooled Energy Storage Battery Cabin features an integrated, modular and standardized design with ultra-high volumetric energy density to minimize site footprint. It is suitable for shared energy storage stations, standalone energy storage stations and large-scale user-side energy storage deployments.

Application Scenarios

• Renewable energy consumption
• Shared energy storage stations
• Standalone energy storage stations
• Large-scale user-side energy storage

Battery Quick Facts

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• System Capacity: 5015.96kWh
• Protection Rating: IP55
• Operating Temperature Range (℃): -30℃ ~ +55℃
• Design Life: ≥25 years
• Installation Type: Containerized

Key Features

• Safety and Stability
  • Battery cabin system engineered for a service life of ≥25 years
  • Multi-level linked fire protection including combustible/volatile gas detection, ventilation and explosion venting for efficient fire suppression and prevention of re-ignition
  • Three-tier fire protection linkage at PACK, cluster and cabin levels
• Intelligent and Efficient
  • Newly developed high-efficiency liquid cooling with integrated thermal management and BMS, reducing auxiliary power consumption by 20%
  • Real-time precise temperature control with cell temperature difference ≤2.5℃ within each PACK to improve cell consistency and extend system life
• Highly Integrated
  • Integrated energy storage system supports back-to-back container stacking to save installation footprint
  • Prefabricated battery cabin assembled in factory to shorten on-site construction time
  • Ultra-high volumetric energy density
• Convenient Operation & Maintenance
  • OTA remote upgrades, app-based operation and cloud-edge collaborative management
  • Full lifecycle fault diagnosis, health assessment and early-warning capabilities
  • Modular design enabling online, convenient replacement and maintenance

Industry Applications

• Energy Storage Solutions

Technical Specifications

• Models: CBES-6.48MWh | CBES-5MWh
• Cell Type: LFP 3.2V/348Ah (CBES-6.48MWh) | LFP 3.2V/314Ah (CBES-5MWh)
• Dimensions (W × D × H): 7260 × 2438 × 3100 mm (CBES-6.48MWh) | 6058 × 2438 × 2896 mm (CBES-5MWh)
• Weight: ≈55t (CBES-6.48MWh) | 45t (CBES-5MWh)
• Ingress Protection (IP) Rating: IP55 | IP55
• Operating Temperature Range: -30℃ ~ +55℃ | -30℃ ~ +55℃
• Relative Humidity: 0 ~ 95% | 0 ~ 95%
• Maximum Operating Altitude: 3000 m | 3000 m
• Cooling Method: Liquid Cooling | Liquid Cooling
• Fire Suppression System (Optional): Aerosol / FK-5-1-12 / HFC-227ea
• Communication Interface: Ethernet, CAN, RS485
• Communication Protocol: Modbus / IEC61850
