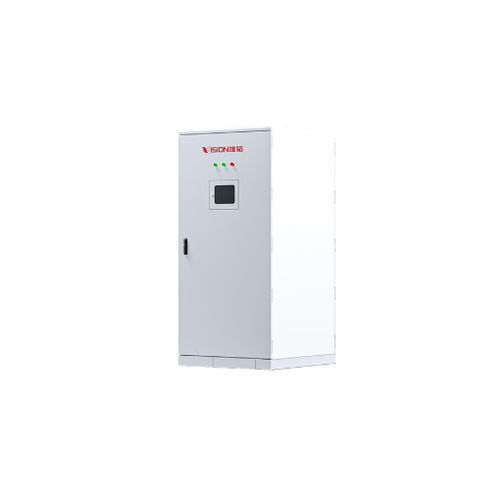

LFP energy storage system CBES

containerizedoutdoorliquid-cooled

Overview
The liquid-cooled outdoor integrated cabinet features a modular integrated design, enabling flexible adaptation to diverse application scenarios such as peak shaving, dynamic capacity expansion, demand response, backup power and microgrids. The system combines LFP battery technology with an efficient liquid cooling solution to maintain cell consistency and reliable operation.

Application Scenarios

• Peak shaving and valley filling
• Dynamic capacity expansion
• Demand-side response
• Backup power
• Microgrid

Battery Quick Facts

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Operating Temperature Range (°C): -30℃ ~ +55℃
• Communication Interfaces: Ethernet, CAN, RS485
• Cooling Method: Liquid Cooling

Key Features

• Thermal management and energy efficiency: High-efficiency liquid cooling coordinated with BMS control reduces auxiliary energy consumption by approximately 20% and maintains cell temperature variation within the pack ≤ 2.5°C to improve consistency and lifecycle.
• Structure and maintenance convenience: Modular integrated plug-and-play design for straightforward transport, rapid deployment and immediate commissioning; supports modular maintenance with fast online unit replacement.
• Intelligent and remote management: Supports OTA remote upgrades, APP-based operation and cloud-edge collaborative management; provides full-lifecycle system fault diagnosis, health evaluation and early warning functions.
• Flexible scalability: Supports parallel operation of up to 10 units to match diverse application needs.
• Safety and fire protection system: Multi-level linked fire protection including combustible/volatile gas monitoring, exhaust ventilation and explosion venting; dual-layer fire protection at cell/pack and container levels.

Specifications

• Model: CBES-125kW/261kWh
• Cell Type: LFP 3.2V/314Ah
• Rated Energy: 261 kWh
• Size (Width × Depth × Height): 1500 × 1400 × 2225 mm
• Weight: 2.8 t
• Operation Temperature: -30℃ ~ +55℃
• Operating Relative Humidity: 0 ~ 95%
• Cooling Method: Liquid Cooling
• Fire Protection System: Aerosol / FK-5-1-12 Fire Suppression
• Communication Interface: Ethernet, CAN, RS485
• Communication Protocol: Modbus TCP/IP
• Standards: GB/T36276, GB/T 34120, GB/T 34131, IEC62619, IEC62477, IEC61000
