Butt hinge HIN14 series

metalstainless steelzinc

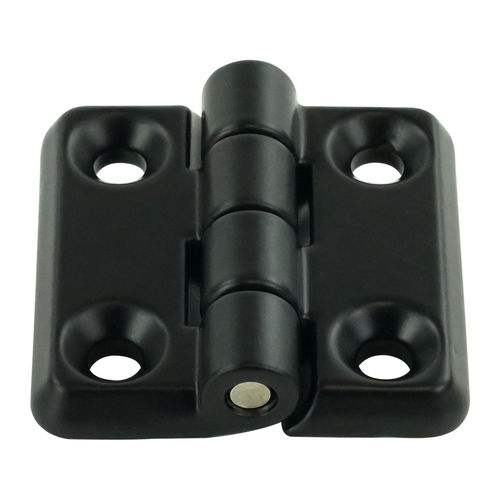

Metal Countersunk Hinges have a strong and durable build, with an attractive and compact appearance; making them suitable for a wide range of hinge applications. The holes on either leaf of the hinge are countersunk in order to keep the fixings flush to the hinge. The spacing between the mounting holes makes this perfect for use with 25mm and 30mm aluminium profile extrusion. Metal Countersunk Hinges are commonly used for doors and gates within machinery enclosures. These Metal Countersunk Hinges come in two sizes: The large Metal Counter Sunk Hinge measures 50mm x 50mm when open, with a hole distance of 30mm x 30mm. The Hinge also has a plate thickness of 6mm and an open thickness of 12mm. The large hinge comes with mounting holes measuring 6.4mm in diameter. The small Metal Countersunk Hinge measures 40mm x 40mm when open, with a hole distance of 25mm x 25mm.The Hinge also has a plate thickness of 5mm and an open thickness of 10mm. Our Metal Countersunk Hinges are stocked in powder coated black and are made from Die Cast Zinc with a 316 Stainless Steel Pin.
