Lift-off hinge HIN100

metalzincmetal

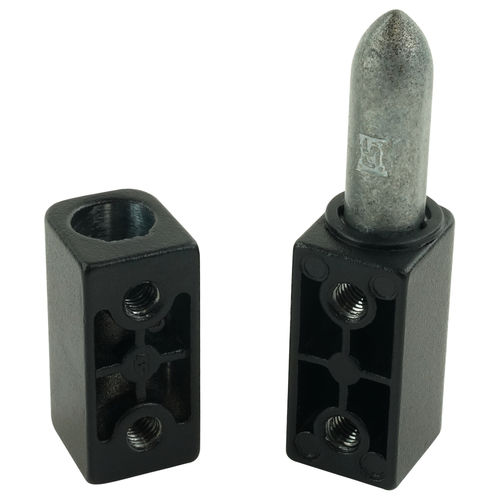

Metal Inline Lift-off Hinge The Metal Inline Lift-off Hinge (also known as lift-off hinges, removable hinges, lift-off door hinge or detachable hinge) are designed to allow the installation of a removable door. These inline lift-off hinges have been designed to be used in a wide range of doors and panels for industrial cabinets and enclosures. Two or more hinges can be installed in the same orientation to allow the door to be lifted off for better access of transportation. These hinges can also be installed with opposing orientation to remove the ability to lift off the door. The Metal Inline Lift-off Hinge comes with threaded holes for clean mounting with no exposed fixings.   The metal inline Lift-off Hinge is available in a 63mm x 15mm size, with a same part hole distance of 19mm, and a male to female hole distance of 13mm. The hinge’s threaded holes are M5 and have a thread depth of 4.5mm. The Metal Inline Lift-off Hinge is available in black. The Metal Inline Lift-off Hinge is made from black powder coated die cast Zinc. Metal Lift-off Hinges can be used for mounting door, panels and safety guards on cabinets and enclosures. These are commonly used in IT, HVAC, Telecoms and manufacturing machinery.
