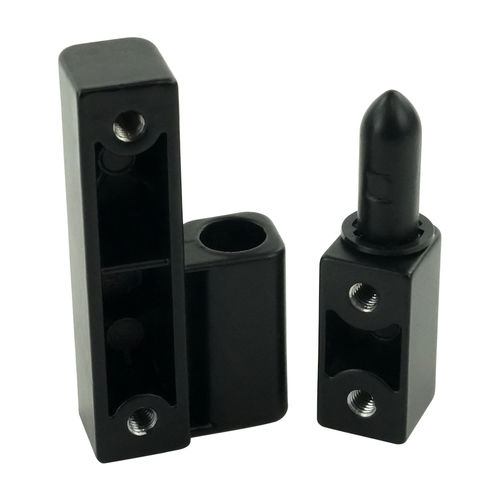

Lift-off hinge HIN12 series

metalzincscrew-in

Metal Offset Lift-off Hinge Metal Offset Lift-off Hinges are designed to allow the installation of a removing door. These Offset lift-off hinges have been designed to be used in a wide range of doors and panels for industrial cabinets and enclosures. Two or more hinges can be installed in the same orientation to allow the door to be lifted off for better access of transportation. The hinges can also be installed with opposing orientation to remove the ability to lift off the door.   The Metal Offset Lift-off Hinge comes with threaded holes for clean mounting with no exposed fixings. The Metal Offset Lift-off Hinges are available in an assembled size of 64mm x 32.5mm, in both a left-handed and right-handed version. The male part has a hole distance of 19mm and the female, offset part has a hole distance of 51mm. When assembled, the two parts have a horizontal hole distance of 17mm. Metal Lift-off Hinges can be used for mounting doors, panels and safety guards on cabinets and enclosures. These are commonly used in IT, HVAC, Telecoms and manufacturing machinery. They are available in black. The Metal Offset Lift-off Hinges are made from black powder coated die cast Zinc.
