Corner hinge HIN17 series

steelzincplastic

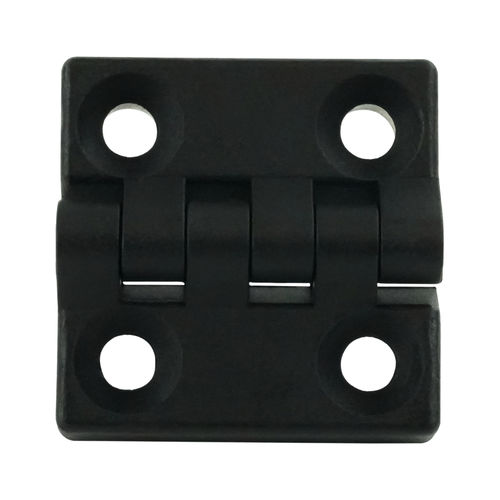

Plastic Countersunk Hinge Plastic Countersunk Hinges are lightweight, strong and durable. They are perfect for use with aluminium extrusions but are also ideal for many other hinge applications. The spacing between the mounting holes makes this perfect for use with 30mm and 40mm aluminium profile extrusion with the use of t-nuts.   The Plastic countersunk hinges can be used for doors or hatches on machinery enclosures.   The Plastic Countersunk Hinges are available in two sizes, and both have a 7mm countersunk bored mounting holes. The larger countersunk hinge measures 64mm x 64mm and has an open hole distance of 40mm x 40mm, with an open thickness of 19mm and a plate thickness of 13mm. The smaller countersunk hinge measures 48mm x 48mm and has an open hole distance of 30mm x 30mm, with an open thickness of 16mm and a plate thickness of 11mm. The Plastic Countersunk Hinges are available in black and are made from glass filled nylon and have a zinc plated steel pin. Plastic Countersunk Hinges are also referred to as Plastic Hinges, Countersunk Hinges, Door Hinges, Gate Hinges, Glass Filled Nylon Hinges, Aluminium Extrusion Hinges, Aluminium Profile Hinges
