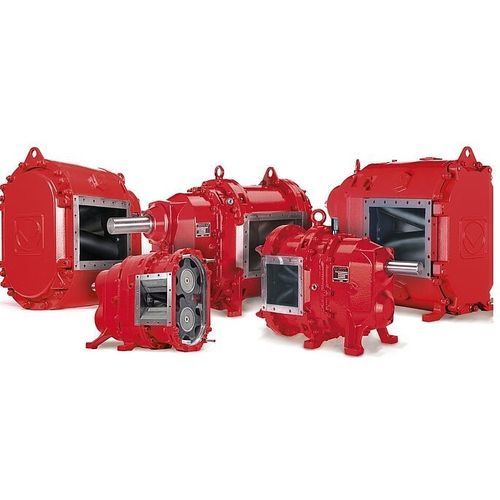

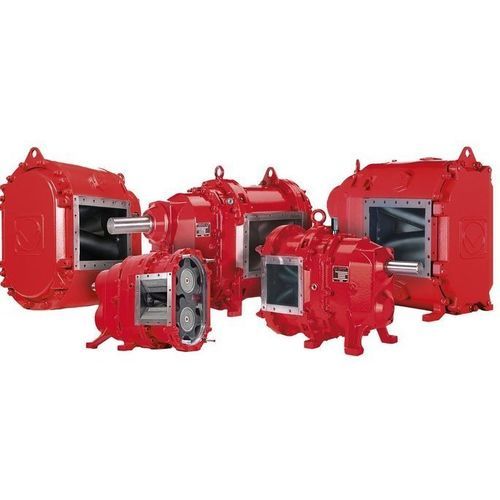

Rotary lobe pump VX series

slurryfor wastewaterfor chemicals

Product overview
The Vogelsang VX series is a family of rotary lobe pumps designed for industrial transfer of media ranging from thin liquids to highly viscous, abrasive, aggressive or shear-sensitive products. The range combines a compact footprint, service-friendly QuickService access and options for numerous materials and drive configurations to meet diverse process requirements.

Key benefits

• Easy on-site maintenance: pump chamber accessible by removing the cover (QuickService).
• Self-priming and resistant to dry running and foreign matter.
• Modular, element-based design reduces spare-part cost and downtime.
• Wide material and lobe selection to match media compatibility and wear resistance.
• High volumetric efficiency for cost-effective operation.

Models (series overview)
VX100
Compact unit available in four sizes. Suited for small to medium capacities up to 50 m3/h and pressures to 10 bar. Options include lightweight aluminium components, directly flanged electric motor and PTB A1 design.

VX136
Universal compact design with six sizes and multiple construction variants. Capacities up to 364 m3/h and pressures to 12 bar. Options include InjectionSystem, radial/axial wear plates and special materials (ADI, stainless steel, nickel alloys).

VX186
Sturdy design in eight sizes and many configurations. Capacities up to 1,025 m3/h and pressures to 12 bar. Built for large volumes and abrasive, viscous or aggressive media; features wear-plate concepts and multiple drive options.

VX215
High-capacity range with four sizes and six designs, enabling flows up to 1,417 m3/h (24,000 l/min) and pressures to 8 bar. Large free passage (eg. 90 mm) offers strong foreign-matter tolerance; QuickService and InjectionSystem options support fast maintenance.

VX230
High-performance series with four sizes and six construction types. Outputs up to 1,234 m3/h and pressures to 12 bar. Designed for rapid service and minimal downtime.

Features of the VX series

• Adjustable pump housing segments to compensate wear without additional parts.
• Axial and radial wear plates in high wear-resistant steels to extend service intervals.
• Wide lobe portfolio: multiple geometries and materials (NBR, EPDM variants, CSM, FKM, PU, stainless steel, nitrided steel) including HiFlo lobes for pulsation-free pumping.
• Material options: abrasion-resistant gray cast iron, ADI, stainless steel and nickel-based alloys; heat treatments and wear coatings available.
• Quality Cartridge mechanical seal: preassembled cartridge for quick, reliable replacement.
• Robust, large-diameter shafts to minimize deflection and start-up wear.

Options of the VX series

• InjectionSystem to improve foreign-matter tolerance, suction and volumetric efficiency (field results indicate up to ~2.5× life increase).
• Radial and axial wear plates in specialty steels.
• HiFlo® lobes for pulsation-free operation and increased suction capacity.
• Speed sensors for flow-related control and monitoring.
• Universal Drive System (UDS) for different drive types and simplified spare-part handling.
• QD design with additional bearing for reduced shaft deflection at high pressure.
• Lightweight/aluminium options for transport applications with wetted parts in wear-resistant materials.

Applications

• Agriculture (spreading, slurry transfer).
• Biogas plants (feeding, recirculation, digestate handling).
• Industry (abrasive or viscous process fluids, chemical transfer depending on material selection).
• Transport and mobile systems (tankers, rail, road, marine solutions).
• Wastewater and sludge handling, membrane filtration feed.

Downloads & additional product media
Manufacturer documentation, brochures and technical datasheets are available from Vogelsang for selection and integration support.

Technical specifications

• Series: VX100, VX136, VX186, VX215, VX230 (multiple sizes and construction types).
• Capacity ranges (examples): VX100 up to 50 m3/h; VX136 up to 364 m3/h; VX186 up to 1,025 m3/h; VX215 up to 1,417 m3/h; VX230 up to 1,234 m3/h.
• Pressure capabilities (examples): VX100 up to 10 bar; VX136 up to 12 bar; VX186 up to 12 bar; VX215 up to 8 bar; VX230 up to 12 bar.
• Free passage example: VX215 up to 90 mm.
• Construction materials: gray cast iron (abrasion-resistant), ADI, stainless steel, duplex and nickel-based alloys; wear plates in special steels.
• Service features: QuickService (wetted parts replaceable in installation), Quality Cartridge mechanical seal, element-based design for economical maintenance.
• Options: InjectionSystem, HiFlo lobes, radial & axial wear plates, UDS, speed sensors, QD design, lightweight/aluminium versions.
