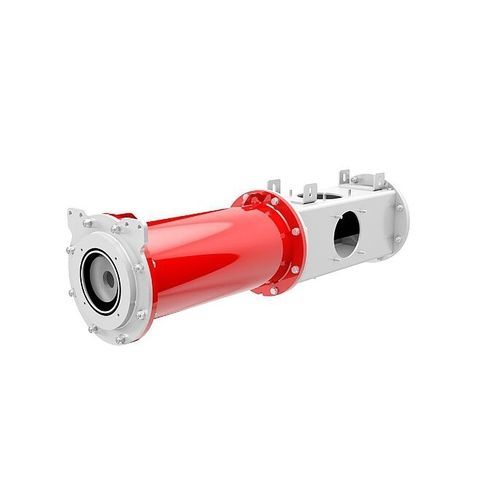

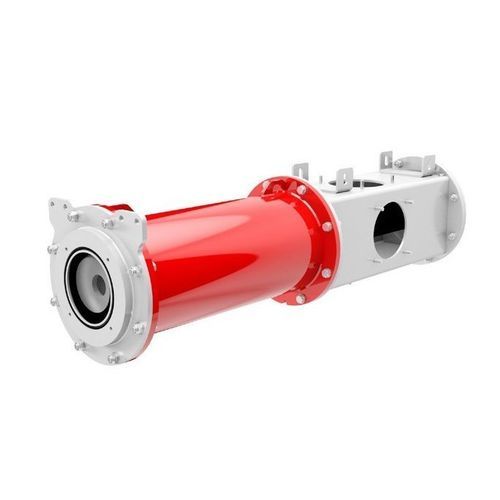

Progressive cavity pump ProCap T

slurryelectricmobile

Overview
The ProCap T progressive cavity pump is a compact unit designed for tankers and slurry spreading in agricultural applications. Based on Vogelsang's modular concept, it enables exchangeable stator and rotor elements, a fully welded housing and durable internal components for long service life.

Key benefits

• More compact installation dimensions compared to previous progressive cavity pumps
• Intelligent modular system for reduced spare parts inventory and flexible maintenance
• Large ball passage for improved solids handling and maximum service life
• Low-wear pumping with high tolerance to foreign bodies

Design and function
The ProCap T follows Vogelsang's modular progressive cavity concept: different sizes are achieved by exchanging stator and rotor elements. The pump features a fully welded housing, an oil-lubricated mechanical seal or high-quality cartridge seal with block ring, and a hollow rotor. The hollow rotor combined with a double bearing in the drive adapter ensures particularly smooth running and reduced weight. An optional reduction gear with minimal angular misalignment is available to avoid the need for a costly wide-angle joint.

Features

• High-quality cartridge seal with block ring for secure sealing and long lifetime
• Modular design with many common parts across sizes to reduce spare parts stock
• Small installation dimension—saves space and weight on tankers
• Hollow rotor for smooth running and weight reduction

Options

• Stone trap to protect the pump and downstream equipment from unwanted solids
• Optional reduction gear providing minimal angular misalignment

Application/Use
Designed primarily for tankers and liquid-manure spreading, the ProCap T is suitable wherever a compact, service-friendly progressive cavity pump with good solids handling is required.

Technical specifications

• Model name: ProCap T
• Pump type: Progressive cavity pump (modular design)
• Housing: Fully welded housing for increased durability
• Rotor: Hollow rotor for smooth operation and reduced weight
• Sealing: Oil-lubricated mechanical seal; optional high-quality cartridge seal with block ring
• Maintenance: Exchangeable stator and rotor elements; modular components for reduced spare parts inventory
• Performance: Large ball passage; high tolerance to foreign bodies; low wear
• Options: Stone trap; optional reduction gear for minimal angular misalignment
• Typical application: Tankers and liquid-manure spreading
