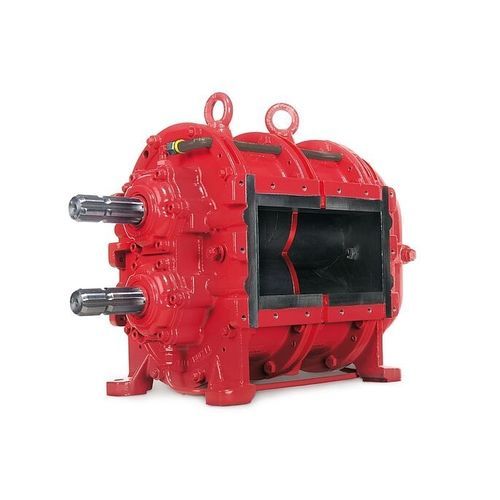

Rotary lobe pump FX series

slurryself-primingmobile

Overview
The FX series by Vogelsang (FarmerPump) is a rotary lobe pump designed for agricultural liquid manure. It provides self-priming operation, high tolerance to fibrous and solid particles, and is available for permanent installation or as a PTO-driven mobile unit.

Key features

• Integrated oil circulation lubrication eliminates manual lubrication
• Industrial block-ring mechanical seal for improved resistance to fibres
• Self-priming and tolerant to foreign bodies
• Smooth, quiet operation due to optimized lobe design
• Lower energy consumption thanks to the rotating separation plate

Features and options (details)

• Oil circulation lubrication: Gearbox-mounted oil pump supplies all seals evenly, reducing maintenance effort.
• Rotating separation plate: Prevents fibre accumulation between lobes to maintain pump performance and reduce fuel/electric consumption.
• Block ring mechanical seal: Industry-standard block-ring seals increase resistance to fibres and extend service life compared with conventional seals.
• Axial wear plates: Wear plates in high-resistance special steel extend maintenance intervals and protect the pump chamber.
• Materials and housings: Standard abrasion-resistant gray cast iron; options available in ADI and stainless steel; duplex and nickel-base alloys on request; heat treatments and wear coatings available.
• Lobe types and materials: Wide selection of geometries and compounds (NBR, white NBR, EPDM variants, CSM, FKM, PU, stainless steel, nitrided steel); geometries include straight, 2/3/4/6-wing and HiFlo pulsation-free designs.
• Installation and drive: Suitable for permanent installation or mobile units on three-point mount; compatible with PTO drive.

Applications
Designed for professional pumping of liquid manure and similar agricultural effluents where fibre content and reliable, low-maintenance operation are required. Suitable for farmers and agricultural contractors.

Technical specifications

• Series / model: FX series
• Maximum pressure: up to 8 bar
• Maximum flow: up to 4,500 L/min
• Pump type: rotary lobe pump
• Torque characteristic: professional manure pump without torque boost
• Seal type: industrial block-ring mechanical seal (fibre-resistant)
• Lubrication: integrated oil circulation lubrication (gearbox-mounted oil pump)
• Wear protection: axial wear plates in wear-resistant special steel; optional heat treatment and wear coatings
• Materials: standard abrasion-resistant gray cast iron; options: ADI, stainless steel, duplex, nickel-base alloys
• Lobe materials: NBR, white NBR, EPDM-SL, EPDM-AL, white EPDM, CSM, FKM, PU, stainless steel, nitrided steel
• Lobe geometries: straight, 2/3/4/6-wing, HiFlo
• Self-priming: yes
• Installation: permanent, PTO-driven, mobile (three-point)
