Overview
The FillMaster is a tank filling station for fast, ergonomic filling of slurry tankers from storage tanks or digesters. Available as FillMaster S (stationary) or FillMaster M (mobile), it eliminates time‑consuming hose coupling by using a double‑telescope filling connector and offers multiple pump and drive options for agricultural and biogas applications.

Key benefits

• Fast, convenient filling of tankers
• No manual coupling/decoupling of hoses
• Mobile version transportable on any tractor via three‑point linkage

FillMaster S (stationary)
The stationary FillMaster S is mounted on tanks or digesters and fills tankers directly via a double‑telescope filling connector that can be lowered manually or electrically (optional). Remote start is possible with wireless or cabled controls, enabling filling from the vehicle cab. Pump options include rotary lobe pumps (VX series) or PowerFill. Depending on configuration, flow rates up to 11,000 l/min are achievable.

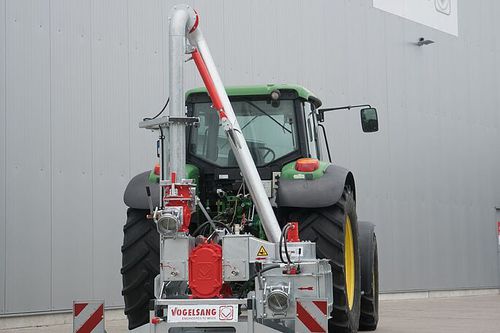

FillMaster M (mobile)
The mobile FillMaster M is mounted on a three‑point frame and is transported by tractor, typically driven via the PTO shaft. It is usually fitted with a VX series rotary lobe pump and includes a heavy material separator to prevent stones and foreign matter entering the tanker. Two filling methods are offered: tanker‑side filling via hose with Perrot coupling or top filling via riser pipe with boom.

Optional equipment and additional features

• Electric or manual lowering of the double‑telescope filling connector (S)
• Wireless or cabled remote control (optional)
• Integration with RotaCut wet macerator with integrated heavy material separator (optional)
• Multiple drive concepts; PTO drive typical for mobile variant

Technical specifications

• Commercial name: FillMaster
• Versions: FillMaster S (stationary), FillMaster M (mobile)
• Max. capacity: up to 11,000 l/min (depending on configuration)
• Pump options: rotary lobe pump (VX series), PowerFill
• Drive: PTO / cardan shaft typical for mobile variant; other drives available
• Mobile mounting: three‑point linkage (transportable by tractor)
• Filling methods: hose with Perrot coupling (tanker‑side) or riser pipe with boom (top filling)
• Filling connector: double‑telescope, adjustable; manual or electric lowering (optional)
• Separator: heavy material separator included on mobile variant; optional with RotaCut on stationary
• Remote control: optional wireless or wired
