3-point hitch salt spreader XTill®

Overview

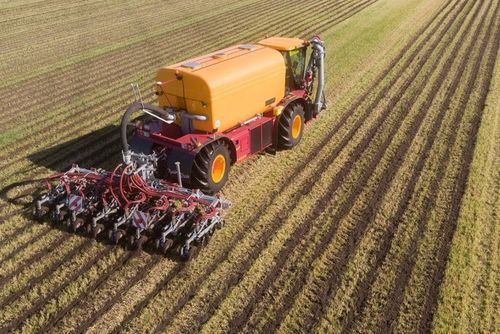

The XTill® Strip Till System combines strip tillage with optional root-level liquid manure (slurry) application in a single pass. Designed for professional agriculture and contractors, it enables accurate nutrient placement while reducing field operations and costs.

Key benefits

• Strip tillage gentle on soil with optional root-level liquid manure application
• Combines multiple operations in one pass to save time and reduce costs
• Liquid manure can be deposited at two independent depths
• Suitable for a wide range of row crops and soil conditions (VarioCrop option)

How it works
Each XTill® row unit is mounted on a parallelogram to maintain a constant working depth. The fertilizer outlet depth is independently adjustable for precise nutrient placement. Star-shaped clearing discs separate residues and form clean furrows. Hydraulic stone overload protection lets each coulter yield to obstacles. Optionally equipped with the Vogelsang DosiMat DMX precision distributor for uniform application (distribution coefficient < 5 %).

Features and options

• Hydraulically foldable frame to 3 m transport width
• Choice of open or closed pressure rollers
• Integrated height control
• DosiMat DMX precision distributor (distribution coefficient < 5 %)
• LED lighting
• Hydraulic stone overload protection
• Star-shaped clearing discs for residue separation
• Press wheels at end of each row unit to form and reconsolidate the seed bed (multiple variants)
• Two ridging disks per row to retain soil in the tillage zone and form a crumbled ridge
• Loosening and fertilizing cultivator arm with height-adjustable outlet tube to deposit liquid manure in an underground depot
• Parallelogram design to ensure constant tillage depth
• Coulter blade to cut crop residue for a clean tillage zone

Product variants / Use cases
The XTill® VarioCrop variant supports a very wide range of row crops and allows row spacing adjustment (example: compact units approx. 45–47 cm). It is used where strip tillage with simultaneous root-level liquid manure application is required to improve crop establishment and reduce mineral fertilizer needs.

Positive effects of the Strip Till method
Strip-till combines advantages of no-till and conventional tillage. Several operations (deep tillage, seedbed preparation, localized liquid manure placement) can be combined in one pass, saving time and costs. Undisturbed residue-covered zones reduce erosion and compaction, preserve pore structure for infiltration and limit evaporation. Tilled strips warm faster to improve germination. Precise subsurface manure placement reduces emissions and the need for additional mineral fertilizer.

Downloads & multimedia (selected)
Brochures and technical documents related to XTill® and advanced Strip Till technology are available in the product downloads section (product brochures and ePapers).

Technical specifications

• Model name: XTill® (Strip Till System)
• Tool mounting: 3-point mounting option for row units
• Working depth control: parallelogram-based constant depth
• Fertilizer placement: independently adjustable depth; two-depth deposition possible
• Distributor: Compatible with Vogelsang DosiMat DMX precision distributor (distribution coefficient < 5 %)
• Residue management: Star-shaped clearing discs and coulter blade
• Soil shaping: Ridging disks (two per row) and press wheels for reconsolidation
• Protection: Hydraulic stone overload protection (infinitely variable)
• Transport: Hydraulically foldable frame to 3 m transport width
• Row spacing (example for VarioCrop): adjustable; compact units allow approx. 45–47 cm
• Options: open/closed pressure rollers, integrated height control, LED lighting
