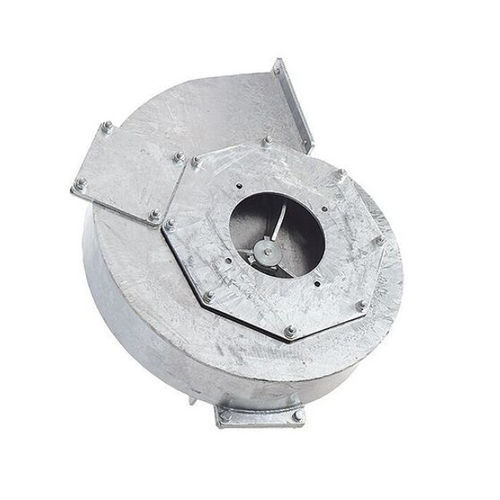

Compact turbo-compressor PowerFillelectrically-powered
Add to favorites
Compare this product
Characteristics
- Type
- compact, electrically-powered
- Airflow
Min.: 0 m³/h
(0 ft³/h)Max.: 720 m³/h
(25,427 ft³/h)
Description
Benefits
Fast filling made easy
The PowerFill turbo filler allows vacuum tankers to be filled significantly faster with substantially reduced foam formation compared with conventional fillers. A generously dimensioned, low-speed housing minimizes foaming while maximizing usable tank volume, saving time during loading operations.
Product overview
PowerFill is a turbo filler designed specifically for vacuum tankers carrying liquid manure. It fills tanks rapidly and completely while homogenizing the product during the filling process to improve subsequent spreading accuracy. The robust, large-section housing enables efficient low-speed pumping and reduces foam formation.
Drive and versions
Available in three performance categories. The PowerFill Small variant offers a compact design with approximately 40% less weight and two drive variants. Drive options include hydraulic drive, mechanical drive via cardan shaft (PTO), and electric motor drive. The more powerful drive variants achieve volume flows of up to 12,000 l/min.
Downloads
Technical specifications
- Up to 30% less filling time for vacuum tankers
- Full utilization of transport volume through complete filling
- More precise spreading of liquid manure thanks to homogenization during filling
- Simple and cost-effective retrofit for standard vacuum tankers
Fast filling made easy
The PowerFill turbo filler allows vacuum tankers to be filled significantly faster with substantially reduced foam formation compared with conventional fillers. A generously dimensioned, low-speed housing minimizes foaming while maximizing usable tank volume, saving time during loading operations.
Product overview
PowerFill is a turbo filler designed specifically for vacuum tankers carrying liquid manure. It fills tanks rapidly and completely while homogenizing the product during the filling process to improve subsequent spreading accuracy. The robust, large-section housing enables efficient low-speed pumping and reduces foam formation.
Drive and versions
Available in three performance categories. The PowerFill Small variant offers a compact design with approximately 40% less weight and two drive variants. Drive options include hydraulic drive, mechanical drive via cardan shaft (PTO), and electric motor drive. The more powerful drive variants achieve volume flows of up to 12,000 l/min.
Downloads
- Brochure: Pumps and cutters for agriculture
- ePaper: Pumps and cutters for agriculture
Technical specifications
- Commercial name: PowerFill
- Application: Turbo filler for vacuum tankers (liquid manure)
- Performance categories: three available
- PowerFill Small: approx. 40% less weight, compact dimensions (two drive variants)
- Maximum reported volume flow (powerful drive variant): up to 12,000 l/min
- Filling time improvement: up to 30% faster filling of vacuum tankers
- Design benefit: large housing for low-speed pumping to minimize foaming
- Function: homogenizes liquid manure during filling for more precise spreading
- Drive options: hydraulic, mechanical (cardan/PTO), electric motor
- Retrofit: designed for simple retrofit on standard vacuum tankers
