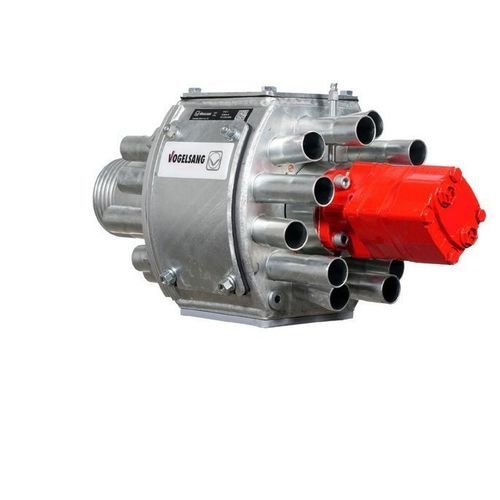

Passive distributor ECM

hydraulic

Overview The ExaCut ECM is a compact, airless manure distributor designed for precise slurry distribution. Like the larger ExaCut ECC, the ECM operates without air intake. Its rotor design never fully closes individual cutting-screen holes, maintaining an even, pulsation-free media flow and delivering high cutting force. Reversal of rotation preserves knife sharpness. The ECM keeps inlet/outlet dimensions of larger models while reducing weight and installation space by approximately 30%. It requires low drive power and a reduced oil volume.

Key benefits

• Approx. 30% space and weight reduction due to compact housing
• High cutting force from an innovative rotor concept
• Universal use across applications: compatible with compact manure injectors and trailing-shoe systems
• Operates without additional air intake
• Hydraulic oil capacity approx. 20 litres

Features

• Reliable airless operation: functions without extra air suction
• Compact and lighter design (approx. 30% lighter than comparable distributors) to optimise installation space and hose routing
• Cutting principle similar to RotaCut: small blades and a rotor that do not fully close the cutting-screen holes ensure a smooth, pulsation-free flow
• Reversal of rotation extends knife life and maintains cutting precision
• Maintains inlet and outlet sizes of larger ExaCut models while saving space

Technical specifications

• Model name: ExaCut ECM
• No air intake required (operates without additional air suction)
• Compact housing: approx. 30% reduction in space and weight compared with larger distributors
• Rotor concept: high cutting force; rotor design prevents complete closure of individual screen holes to ensure smooth flow
• Flow characteristic: smooth, pulsation-free media flow
• Knife maintenance: reversal of rotation to keep knives sharp
• Drive requirement: low drive power; indicated oil flow approx. 20 l/min
• Hydraulic oil capacity: approx. 20 litres
• Inlet/outlet: same inlet and outlet size as larger ExaCut models
• Applications: suitable for compact manure injectors, trailing-shoe systems (e.g. professional 30 m trailing shoe) and a wide range of slurry spreading linkages
