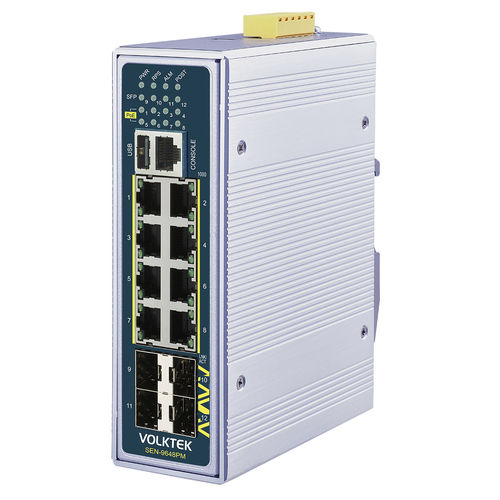

Managed ethernet switch SEN-9648PM-24V

12 portsgigabit EthernetProfiNet

Product Highlights 8 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port 4 x GbE SFP uplink ports for long-distance connectivity to control center and cascading 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files It prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets Wide input power range (24V to 57V) suits different environments DNV Marine Approval and Lloyd's Register Group Approval, communication standards for safe and reliable marine operations Operating temperatures -40°C~75°C (-40°F~167°F) and IP30 Aluminum housing * The highest degree of temperature operation certified by DNV is (Class D) -25°C~70°C (-13°F~158°F) * The nominal voltage of 24VDC for DNV type approval is specified. Overview SEN-9648PM-24V is an 8-port 10/100/1000 PoE+ downlink and 2-port GbE SFP uplink managed industrial grade switch designed to meet the thermal requirements and environmental conditions of Marine applications. This PoE+ switch features up to 8-port PSE (power sourcing equipment) ports with plug and play features to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches and the control center. The RJ45 type console port allows outbound network troubleshooting when networks go wrong. The USB port, designed to save configuration files, save system log files, and upgrade firmware, reduces network downtime and operational costs. The switch offers various in-built traffic optimization and network performance features to prioritize industrial applications, prevent the loss of data during communication, and stabilize transmission. The switch includes a topology map compatible with third-party devices to monitor the network. This device complies with cybersecurity standards to safeguard the network from vulnerabilities and protect your assets. This switch is built with industrial grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many marine applications without extra power outlet installation needed. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40°C~75°C (-40°F~167°F) it suits demanding environments. Features High-Power Budget for PoE Devices: Compliant with PoE+ (IEEE 802.3at), the switch supplies 30W per each PoE port, for a 240W total power budget and allows simple “plug and play” PoE for various types of high power-consuming PoE devices. PoE+ not only eliminates the need for installing additional power outlets or adapters but also offers advanced and smart PoE+ features that allow users to save time by configuration automated control to all PDs. Port-based and IEEE 802.1Q VLAN: GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains. Safety and High Performance in Industrial Marine Applications: This device is tested and certified for safe use in demanding conditions characteristic of Industrial and Marine Applications, to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over-voltage, over-current, and reverse polarity, including the following: Shock (IEC 60068-2-27) | Freefall (IEC 60068-2-32) | Vibration (IEC 60068-2-6) | DNV-CS-0339:2016 | DNV-RU-SHIP-Pt4Ch9:2018 | IEC-60945, IACS E10 (Rev.6 2014) | LR certify environmental category ENV1, ENV2, and ENV3 Time-Efficient Installation: Auto-MDI/MDIX (medium dependent interface / MDI crossover) on all ports allows automatic communication once the switch is plugged. Redundant Power System: To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP) Interface: 8 x 10/100/1000BASE-T (PoE RJ45), 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB Port, DIP Switch (Primary/Redundant Power Voltage Drop Alarm setting), LED Panel (PWR, RPS, ALM, POST, PoE, 1000, LNK/ACT) Power: Input Voltage: Primary inputs: 24~57VDC, Redundant inputs: 24~57VDC; Connection: Terminal Block; Power Consumption: System: 18W, PoE Power Budget: 124W@24VDC or 240W@48VDC; Alarm Relay: One relay output, 1 A @ 24V DC Mechanical and Environment: Housing: Aluminum (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Weight: 955 g (2.1 lb); Dimension (WxHxD): 50 x 161.5 x 119.9 mm (1.97 x 6.35 x 4.72 in) Ordering Information: Model: SEN-9648PM-24V; Description: Managed 8 x 10/100/1000 PoE+ & 4 x GbE SFP Switch with USB Support, DNV MARINE APPROVAL Technical Specifications 8 x 10/100/1000 PoE+ ports (30W max per port, 240W total) 4 x GbE SFP uplink ports 1 x Console Port (RJ45), 1 x USB Port Wide input power: 24~57VDC (primary and redundant) DIN-Rail mounting, IP30 Aluminum housing Operating temperature: -40°C~75°C Weight: 955 g Dimensions: 50 x 161.5 x 119.9 mm Certified: DNV Marine, Lloyd's Register, IEC 60068, IEC-60945, IACS E10
