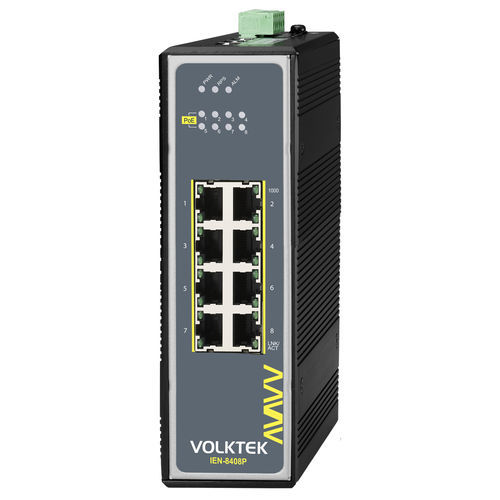

Unmanaged ethernet switch IEN-8408P-24V

8 portsProfiNetEtherNet/IP

Product Highlights: 8 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port Industrial QoS prioritizes EtherNet/IP, PROFINET, and GOOSE packets Wide input power range (24V to 57V) for factory floor and typical surveillance applications Uses Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations Operating temperature -40°C~75°C (-40°F~167°F) and IP30 aluminum case Overview: INS-8408P-24V is an unmanaged 8-port 10/100/1000 PoE+ downlink industrial switch designed for simple plug & play surveillance and internet access points applications. This PoE+ switch reduces costs by eliminating the need for multiple power outlets to power each individual powered device (PD) at distances up to 100 meters. All PSE (power sourcing equipment) and LAN ports use auto-negotiation technology to discover compatible devices without extra installation requirements. The device uses port-based QoS to prioritize traffic on two ports, uses VLAN Passthru for continuous packet transfer, and uses industrial QoS, to prioritize Ethernet/IP, PROFINET, and GOOSE packets. The device can be discovered by monitoring systems with the help of an LLDP Filter, to visualize the switch in a network topology map. Designed to work in industrial demanding environments, it's enclosed in an IP30 aluminum case to protect the device from tools and hazards and high thermal conductivity for applications at temperatures ranging -40°C~75°C (-40°F~167°F). The wide input power range from 24V to 57V enables the device to operate in factory ecosystems and other commercial/residential security applications without extra power outlet installation needed. To ensure the connected devices operate reliably, it uses a Redundant Power Supply system and a Relay Alarm to issue alerts if power fails.
