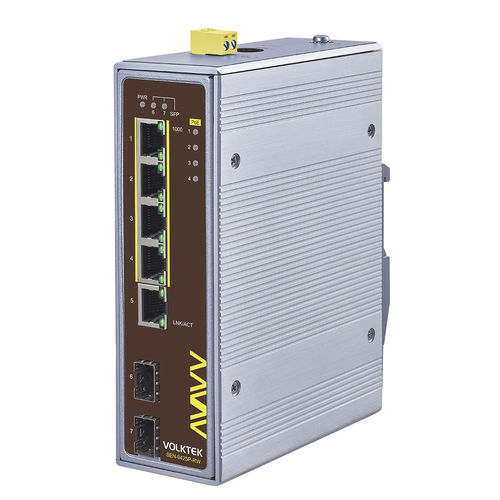

Unmanaged ethernet switch SEN-9425P-24V-RW

5 portsgigabit EthernetProfiNet

Product Highlights - 4 x 10/100/1000 PoE+ PSE downlink ports - 30 Watts max. output power/port - 1 x 10/100/1000 RJ45 and 2 x GbE SFP uplink ports for long-distance connectivity to control center and cascading - Optimizes network performance with Flow Control and QoS, and traffic priority on port #1 - Industrial QoS prioritizes EIP (EtherNet/IP), PROFINET, and GOOSE packets - Wide input power range (24 to 57V DC) suits different environments - Railway Approval EN 50155, EN 50121-4, EN 61373 Certifications, communication standards for safe and reliable railway operations - Operating temperature -40°C~75°C (-40°F~167°F) and IP30 Aluminum housing Overview SEN-9425P-24V-RW is a 4-port 10/100/1000 PoE+ downlink, 1-port 10/100/1000 RJ45 downlink, and 2-port GbE SFP uplink unmanaged industrial-grade switch designed to meet the thermal requirements and environmental conditions of surveillance and WAP Railway applications. This PoE+ switch features up to 4-port PSE (power sourcing equipment) ports with plug and play features to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center. To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE. This switch is built with industrial-grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without the need for extra power outlet installation. The device has two power input methods: a 2-pin Terminal Block and a 4-pin mini-DIN that attaches firmly to the device, preventing it from disconnecting during strong vibrations. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40°C~75°C (-40°F~167°F) it suits heavy industrial environments. Features - High-Power Budget for PoE Devices: Compliant with PoE+ (IEEE 802.3at), the switch supplies 30W per each PoE port, for a 120W total power budget and allows simple “plug and play” PoE for various types of high power-consuming PoE devices. - Firm Power Connection and DIN-Rail mountable (AC to DC): DIN-Rail mountable power adaptor; 4-pin mini-DIN that attaches firmly to the device avoiding it from disconnecting during strong vibrations. - Innovative Power Boost Technology: 24 to 57V DC power boosting with DC-to-DC converter for high-power requiring PoE/PoE+ devices. - Resistant to Extreme Environments: The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to extreme temperatures (-40°C~75°C), and resistance to interference makes this device infallible in demanding industrial environments around multiple types of machinery. Specifications - Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1p (Class of Service) - Ports: 4 x 10/100/1000BASE-T (PoE RJ45), 1 x 10/100/1000BASE-T (RJ45), 2 x GbE SFP Slots - LED Panel: PWR, SFP, PoE, 1000, LNK/ACT - Input Voltage: 24~57V DC - Connection: Terminal Block - Power Consumption: System: 14W, PoE Power Budget: 120W - Power Input Polarity Protection: Present - Housing: Aluminum (IP30 protection) - Mounting: DIN-Rail, Wall Mount/Rack-mount - Operating Temperature: -40°C~75°C (-40°F~167°F) - Storage Temperature: -40°C~85°C (-40°F~185°F) - Operating Humidity: 5 to 95% RH (non-condensing) - Storage Humidity: 5 to 95% RH (non-condensing) - Weight: 869 g (1.92 lb) - Dimension (WxHxD): 50 x 161.5 x 119.9 mm (1.97 x 6.35 x 4.72 in) - Certifications: EN 50155, EN 50121-4, EN 61373, CE, FCC, ROHS Ordering Information - Model: SEN-9425P-24V-RW - Description: Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 2 x GbE SFP Switch, Railway Approval *Specifications subject to change without prior notice.
