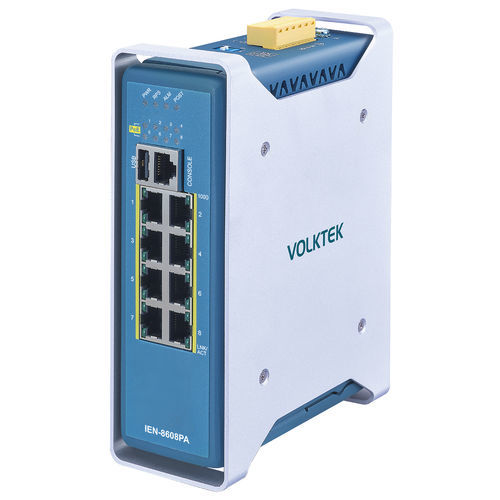

Managed ethernet switch IEN-8608PA-24V

8 portslayer 2DIN rail

Product Highlights: 8 x 10/100/1000 PoE+ ports - 30 Watts max. power/port 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations Wide input power range (24V to 57V) for factory floor and typical surveillance applications Operating temperature -40˚C~75˚C (-40°F~167°F) and IP40 aluminum housing Overview: IEN-8608PA-24V is a high-performance managed 8-port 10/100/1000 GbE PoE+ downlink switch mainly designed for factory floor connectivity and security applications. This industrial grade managed PoE+ switch features 8-port PSE (power sourcing equipment) ports to control all remote powered devices (PDs) with the help of automated features controlled from the web browser. The RJ45 type console port allows outbound network troubleshooting when networks go wrong. The USB port, designed to save configuration files, save system log files, and upgrade firmware, reduces network downtime and operational costs. This device protects the network following safe cybersecurity standards. The network topology map feature allows visualizing the network of connected devices. Designed to work in industrial demanding environments, and enclosed in an IP40 aluminum case with high thermal conductivity to protect the device from tools and hazards. It operates between a wide temperatures of -40˚C~75˚C (-40°F~167°F). The wide input power range from 24V to 57V enables the device to operate in factory ecosystems and other commercial/residential security applications without extra power outlet installation needed. To ensure the connected devices operate reliably, it uses a Redundant Power Supply system and a Relay Alarm to issue alerts if power fails.
