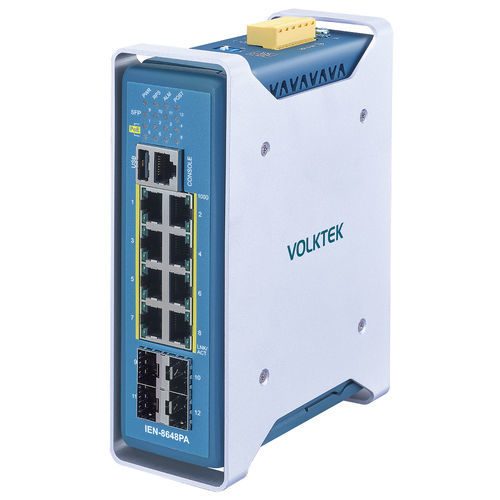

Managed ethernet switch IEN-8648PA-24V

12 portsDIN railstandard

Product Highlights: 8 x 10/100/1000 PoE+ downlink ports - 30 Watts max. power/port 4 x GbE multi-rate SFP uplink ports - 2 for cascading and 2 for uplink to control center switches 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations and issue alerts if power fails Wide input power range (24V to 57V) for factory floor and typical surveillance applications Operating temperature -40°C~75°C (-40°F~167°F) and IP40 aluminum housing Overview: IEN-8648PA-24V is a high-performance managed 8-port 10/100/1000 GbE PoE+ downlink and 4-port FX/GbE SFP uplink switch mainly designed for factory floor connectivity and security applications. This industrial-grade managed PoE+ switch features 8-port PSE (power sourcing equipment) ports to control all remotely powered devices (PDs) with the help of automated features controlled from the web browser. The SFP ports offer long-distance, noise-free fiber transmissions. The RJ45-type console port allows outbound network troubleshooting when networks go wrong. The USB port, designed to save configuration files, save system log files, and upgrade firmware, reduces network downtime and operational costs. This device protects the network following safe cybersecurity standards. The network topology map feature allows for visualization of the network of connected devices. It uses rate limitation and QoS (Quality of Service) to keep stable traffic. Designed to work in industrial demanding environments and enclosed in an IP40 aluminum case with high thermal conductivity to protect the device from tools and hazards. It operates between a wide temperature of -40℃~75℃ (-40°F~167°F). The wide input power range from 24V to 57V enables the device to operate in factory ecosystems and other commercial/residential security applications without extra power outlet installation needed. To ensure the connected devices operate reliably, it uses a Redundant Power Supply system and a Relay Alarm to issue alerts if power fails.
