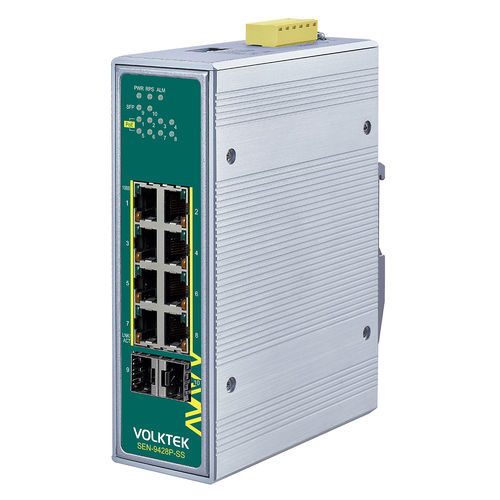

Unmanaged ethernet switch SEN-9428P-24V-SS

10 portsgigabit EthernetProfiNet

Product Highlights 8 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port 2 x GbE SFP uplink ports for long-distance connectivity to control center and cascading Prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets Wide input power range (24V to 57V) suits different environments EEE 1613 and IEC 61850-3 certifications, communication standards for safe and reliable substation operations Operating temperatures -40°C~75°C (-40°F~167°F) and IP30 Aluminum housing Overview SEN-9428-24V-SS is an 8-port 10/100/1000 PoE+ downlink and 2-port GbE SFP uplink unmanaged industrial grade switch designed to meet the thermal requirements and environmental conditions of surveillance and WAP Substation applications. This PoE+ switch features up to 8-port PSE (power sourcing equipment) ports with plug-and-play features to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliability, and long distances to other switches or the control center.To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE. The device allows users to change data priority and speed settings, pushing the DIP switch.This switch is built with industrial grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without extra power outlet installation needed. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40°C~75°C (-40°F~167°F) it suits demanding environments. Features Redundant Power System: Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm. Innovative Power Boost Technology: 24V to 57V DC power-boosting with DC-to-DC converter for high-power requiring PoE/PoE+ devices. High-Power Budget for PoE Devices: Up to 30W per port (IEEE 802.3af/at) powering to PoE+ devices. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.1p (Class of Service) Interface: 8 x 10/100/1000BASE-T (PoE RJ45), 2 x FX/GbE SFP Slots; DIP Switch: Power voltage drop alarm setting (PWR & RPS), Broadcast storm control setting (STORM), Port-based QoS setting (QoS on P1 & P2), Fiber port speed setting (100FX on P9 & P10); LED Panel: PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT Power: Input Voltage: Primary input: 24~57V DC, Redundant: 24~57V DC; Connection: Terminal Block; Power Consumption: System: 15W, PoE Power Budget: 124W @ 24V DC, 240W @ 48V DC; Alarm Relay: One relay output with current carrying capacity of 1A @ 24V DC Mechanical and Environment: Housing: Aluminum (IP30 protection); Mounting: DIN-Rail, Wall Mount/Rack-mount; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 930 g (2.1 lb); Dimension (WxHxD): 50 x 161.5 x 119.9 mm (1.97 x 6.35 x 4.72 in) Ordering Information ModelDescriptionSEN-9428P-24V-SSUnmanaged 8 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch, Substation Approval Certifications / Icons Technical Specifications / Features 8 x 10/100/1000 PoE+ ports (30W max. per port) 2 x GbE SFP uplink ports Wide input power range: 24V to 57V DC Redundant power system and alarm relay Operating temperature: -40°C~75°C IP30 aluminum housing DIN-Rail, Wall Mount/Rack-mount options IEEE 802.3af/at compliant PoE Power Budget: 124W @ 24V DC, 240W @ 48V DC Dimensions: 50 x 161.5 x 119.9 mm Weight: 930 g Certifications: IEEE 1613, IEC 61850-3
