Circular vacuum suction cup SV series

rubberhandling

Product description

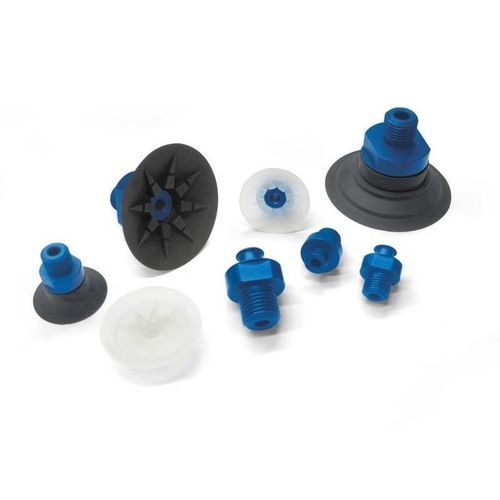

The SV series vacuum cups (STAR VACUUM) are designed for handling flat and flexible items, such as cardboard interlayers and thin metal sheets, without causing deformation. Internal rubber reinforcement sectors form a star-shaped bearing surface that pairs a soft, flexible sealing lip for surface conformity with a bearing area engineered to provide stability and rigidity in vertical and horizontal handling. The cups can be supplied with male or female threaded metal fixing supports in anodised aluminium.

Applications

• Handling cardboard interlayers, thin metal sheets and other flat or flexible components
• Pick-and-place operations requiring minimal surface deformation
• Packaging lines, assembly stations and material handling systems

Key features

• Series: SV (STAR VACUUM)
• Bearing surface: star-shaped rubber-reinforced sectors
• Sealing lip: soft, flexible for optimal surface adaptation
• Stability: bearing surface designed for maximum rigidity in vertical and horizontal handling
• Fixing: optional male or female threaded metal support in anodised aluminium
• Variants: multiple diameters and SR / F versions available

Product codes

• SV20SR, SV25SR, SV30SR, SV40SR, SV50SR
• 0008132, 0008133, 0008134, 0008135, 0008141, 0008142
• SV20, SV25, SV30, SV40, SV50
• SV20F, SV25F, SV30F, SV40F, SV50F

Documentation & accessories

• Optional anodised aluminium fixing supports (male or female threaded)
• Product datasheet (ref. 1.08_1.09) and CAD files available on request

Technical specifications

• Type: vacuum cup, SV series (STAR VACUUM)
• Application: handling flat and flexible parts
• Structure: internal rubber reinforcement sectors creating a star-shaped bearing surface
• Sealing: soft, flexible lip for surface conformity
• Mounting: threaded metal fixing supports in anodised aluminium (optional)
• Available models: SV20 / SV25 / SV30 / SV40 / SV50 and SR / F variants
