Silicone suction cup BEC series

anodized aluminumstainless steelfor vacuum

Product overview
Bernoulli's theorem explains many phenomena, such as the lifting of a plane's wing or of a light disc in front of a tube end from which air flows out quickly. This phenomenon is exploited for manufacturing vacuum gripping systems (vacuum cups) and handling, with no contact, fragile objects such as semiconductor plates, silica discs, solar cells, precious metal foils and films.

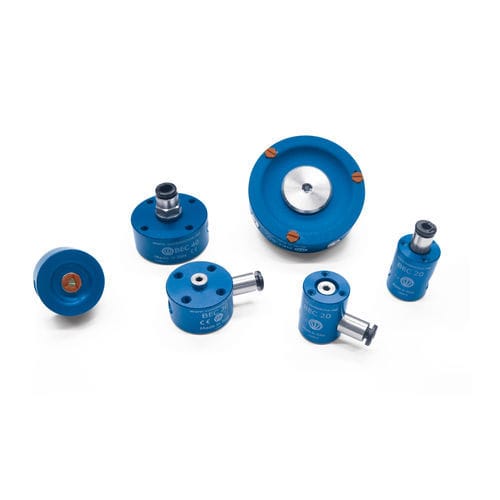

Construction and features

• Cups made with anodised aluminium with stainless steel centre thrust disc.
• Antistatic silicone spacers located on the cup gripping plane to prevent transverse movements of the gripped object.
• Compressed air supply connections can be axial and radial.
• Quick coupler for the flexible pipe included in the package.
• Unused holes are closed with brass threaded caps.
• Rear part of the cup has 3 or 4 threaded holes for fitting to the automation.

Product codes

• BEC20
• BEC30
• BEC40
• BEC60

Applications

• Handling of semiconductor plates
• Handling of silica discs
• Solar cells
• Precious metal foils
• Films and other fragile items requiring non-contact handling

Caractéristiques / spécifications techniques

• Material: Anodised aluminium body with stainless steel centre thrust disc
• Gripping plane: Antistatic silicone spacers to prevent transverse movement
• Air supply: Axial and radial compressed air connections
• Accessories: Quick coupler for flexible pipe included; unused holes sealed with brass threaded caps
• Mounting: 3 or 4 threaded holes on rear for automation fitting
• Available references: BEC20, BEC30, BEC40, BEC60
