Bellows suction cup VMG134

ovalrectangularcircular

General features of the rubber compounds for Vacuum Cups
A table with the features of the rubber compounds used for the vacuum cups: commercial name, international abbreviation, Vuototenica abbreviation, positive and negative features, colour, operating temperature, hardness, chemical resistance, food standards and examples of use.

Vacuum cups with supports (small diameters)

• Traditional cup-shaped vacuum cups suited for gripping small objects with flat, slightly concave or convex surfaces.
• Diameters ranging from 4 to 9 mm for this range.
• Standard compounds: natural para rubber (N), oil-resistant rubber (A) and silicone (S).
• Cold fitted without adhesive onto nickel-plated brass support; support shaped to fit cup and provided with male threaded pin for fastening.
• Spare cups replaceable by ordering cup indicated in table in desired compound. Special compounds and supports in different materials available on request in minimum quantities.
• Product codes: 010410 010510 010610 010707 010810 010907S 000801 000802 080410 080510 080610 080707 080810 080907S

Vacuum cups with supports (10 to 45 mm)

• Cup-shaped vacuum cups for gripping and handling; diameters 10 to 45 mm.
• Available in natural para rubber (N), oil-resistant rubber (A) and silicone (S).
• Cold fitted onto nickel-plated brass or anodised aluminium supports; supports with male threaded pin for fastening.
• Spare parts replaceable by ordering cup code in desired compound. Special compounds and supports available upon request.
• Product codes: 011010 011210 011510 011810 012010 012210 012515 013015 013515 014015 014515 ... (many codes listed on page)

Star Vacuum cups (SV series)

• SV (STAR VACUUM) series developed for handling flat and flexible objects (e.g., cardboard, thin metal sheets) without deformation.
• Star-shaped bearing surface: rubber reinforcement sectors give soft lip for surface adaptation and sectors for stability and rigidity for vertical/horizontal handling.
• Fittable with male or female threaded metal fixing supports in anodised aluminium.
• Product codes: SV20SR SV25SR SV30SR SV40SR SV50SR 0008132 0008133 0008134 0008135 0008141 0008142 SV20 SV25 SV30 SV40 SV50 SV20F SV25F SV30F SV40F SV50F

Maxigrip cups (round flat and bellows)

• Designed as alternative for robot-automotive field; round/oval, flat and bellows-type; supports vulcanised onto cup.
• Flexible outer lip combined with bellows features allows adaptation to flat, concave, convex surfaces without deforming thin objects.
• Internal design facilitates drainage of oil and water; high friction coefficient for oil-covered metal sheets and wet glass or marble.
• Made with exclusive BENZ compound: hardness 60-75°Sh, working temperature -40 to +170°C, stain-resistant, excellent abrasion, water and chlorine-containing oil resistance.
• Wide accessories range (adapters, couplers, articulated joints) to install on any vacuum handler.
• Product codes: VRP40A VRP50A VRP60A VRP80A VRP100A VRP125A VRS40 VRS50 VRS60 VRS80 VRS100 VRS125

Suction cups for handling plastic films, flow packs and packaging

• Series designed for thin, lightweight, delicate objects (plastic or paper bags).
• Especially thin lip for adaptation to shape changes; internal cleats distribute vacuum evenly and prevent thin materials from being deformed or sucked into central hole.
• Para compound recommended for best adhesion and gentleness on material.
• Product codes include: 011409 0008239 0008240 081409 081409F 011410 ...

Round flat vacuum cups with supports (various sizes)

• Designed for wooden or plastic panels, thin glass or marble sheets, fragile metal sheets, ceramic tiles.
• Low, strong and slightly tilted lip avoids swiping; internal cleats reduce air volume to be sucked and create supporting surface preventing deformation and slipping.
• Cold fitted onto anodised aluminium support and locked by ring nut. Larger cups may include M8 threaded hole for insertion of grub screw to reduce air to be suctioned.
• Product codes examples: 017624 019024 0111024 0115036 0008108 ...

Vacupredator cups for gripping bags, packs and flexible containers

• Designed to grip flexible containers (paper/plastic) containing powders, granulated products, liquids, etc.
• Made of anodised aluminium, equipped with slotted plate and special foam rubber seal to adapt to creases and prevent perimeter vacuum losses.
• Calculated lifting force for vacuum at least -75 KPa with factor of safety 3.
• Product codes: VP12OF1015 VP22OF1515 VP0612OF1015 VP0916OF1030 VP0921OF1030 VP1520OF1030 VP2030OF1530 VP3040OF1530

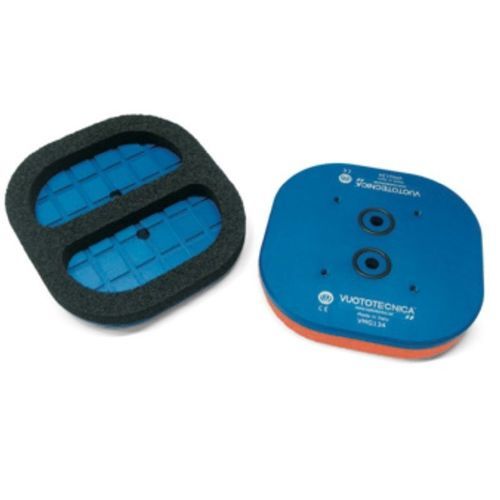

VMG134 suction cup for structured tiles

• Designed for automatic sorting machines handling textured tiles; shape and material ensure secure grip on uneven/rough surfaces.
• Made of high-density foam rubber; available compounds with thermal ranges: EPDM (SB) -40°C to +130°C; Geranium foam (OF) -40°C to +80°C; Neoprene (NF) -20°C to +80°C.
• One side self-adhesive for quick attachment; support in anodised Anticorodal with 4 attachment holes and 2 vacuum connections sealed with NBR O-rings.
• Spare self-adhesive foam rubber replaceable by ordering in desired compound.
• Product codes: 01134134 VMG134 0008479

Vacuum cups with vulcanised support (heavy-duty / automotive)

• Designed for gripping moulded or drawn sheet metal (automotive sector); ground lip ensures immediate grip and perfect vacuum seal.
• Produced in BENZ compound to resist chlorine in forming/drawing oils; galvanised steel support vulcanised onto cup.
• Available in special compounds on request in minimum quantities.
• Product codes examples: 085040 085040GRB 087540 087540GRB 087540GRN ...

Flat round vacuum cups with vulcanised support (heavy loads)

• Vulcanised onto steel support; central threaded hole for fastening and side threaded hole for vacuum connection on some models.
• Labyrinth graved face made in same compound; grips thin/fragile glass and marble with minimal bending.
• Internal vertical lip on certain series for extremely rough surfaces (embossed metal, sawn marble, wooden boards, precast concrete).
• Product codes include: 0811015 0815015 0820010 0825010 0830010 0835010 ...

Wide range of other cup types and accessories

• Flat and bellows elliptical cups, rectangular flat cups, rectangular foam cups with self-adhesive side, bellows cups for packaging and flow packs, reinforced bellows, two-bellows heavy-duty cups, concave cups for cylindrical objects, circular rim cups for objects with central hole, special-shaped cups for CDs/labels/chocolates/etc.
• Supports and accessories: nickel-plated brass, anodised aluminium supports; adapters (gas↔metric, NPT), threaded grub screws with calibrated hole to reduce suction section, galvanised steel adapters, AQ adapters for robotic systems, MF adapters for thread enlargements.
• Sheets and strips: OF foam rubber sheets/strips (self-adhesive) for making custom cups; SB extra soft foam (EPDM) for OCTOPUS gripping surfaces; NF neoprene foam for oil resistance and outdoor use.
• Bernoulli vacuum cups for non-contact handling of fragile objects (semiconductor plates, solar cells, foils); anodised aluminium construction with stainless steel thrust disc and antistatic silicone spacers.
• Self-locking vacuum cups with traction release available for holding objects without connection to vacuum source (suitable for impermeable smooth surfaces).

Notes

• Standard compounds most frequently referenced: Para (N), Oil-resistant (A), Silicone (S), BENZ (special high-temperature/oil resistant), OF (Geranium foam), NF (Neoprene foam), SB (EPDM foam).
• Supports: nickel-plated brass, anodised aluminium, galvanised steel; mounting often via male/female threaded pin or central threaded hole; some supports include side vacuum connections, O-ring seals, filters and anti-rotation features.

Caractéristiques / spécifications techniques

• Compounds and materials: N (natural para rubber), A (oil-resistant rubber), S (silicone), BENZ, OF (Geranium foam), NF (Neoprene foam), SB (EPDM foam).
• Temperature ranges: BENZ up to +170°C; OF Geranium foam -40°C to +80°C; NF neoprene foam -20°C to +80/-100°C depending on item; SB EPDM foam -40°C to +130°C for specific items.
• Typical hardness: BENZ ~60-75°Sh (as indicated for Maxigrip).
• Mounting: cold fit (no adhesive) on supports; supports include male/female threaded pins, threaded holes, ring nut locking, or vulcanised supports.
• Special features: internal cleats reduce suction volume and distribute vacuum; bellows for compensation of flatness errors and quick release; star-shaped sectors for flexible materials; foam seals for flexible container conformity.
• Available accessories: adapters (gas↔metric, NPT), threaded reductions (grub screws with calibrated hole), self-locking supports, anti-slip coated supports, filters, articulated joints, couplers, non-rotating holders.
