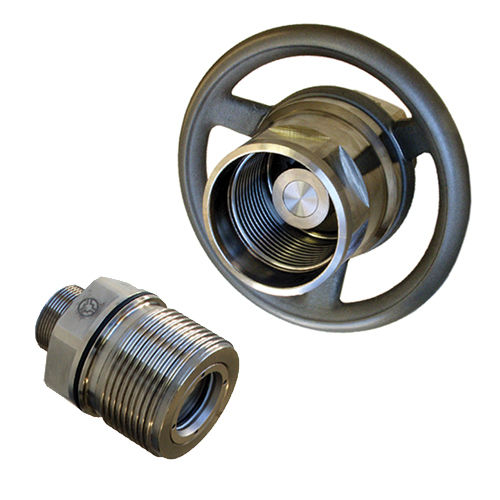

Clean-break screw coupling for hydraulic applications CH series

clean-break screw coupling for hydraulic applications
clean-break screw coupling for hydraulic applications
clean-break screw coupling for hydraulic applications
Add to favorites
Compare this product

Characteristics

Options
for hydraulic applications
Diameter

16 mm, 20 mm, 25 mm (0.63 in)

Operating pressure

250 bar (3,625.94 psi)

Description

Clean-break couplings for hydraulics Types: CH-016, CH-020, CH-025 Nominal bore: 16, 20 and 25 mm Working pressure: up to 250 bar / 3,600 psi, can be connected at residual pressures of 10 bar (150 psi) Media: for hydraulic applications Materials: steel chemically nickel plated Special features / Options: Non-squirting clean-break screw-type coupling for hydraulic applications in the heavy industry. The special round thread of the locking device is insensitive to pollution and can be cleaned very easy. Due to the specific transmission ratio of the round thread as well as the mounting of the screw sleeve the coupling process can be carried out with very low force.
