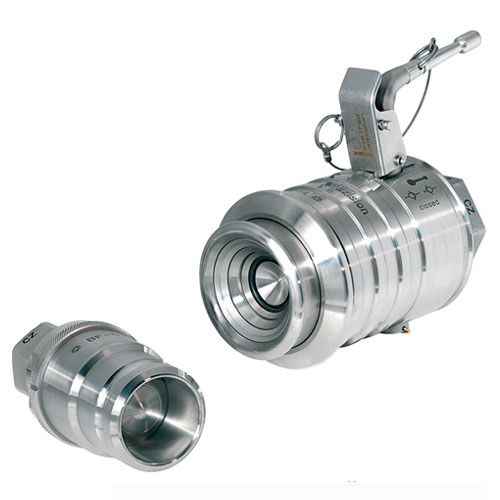

Hydraulic fitting BF series
pneumaticquickstraight

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product

Characteristics

Applications
hydraulic, pneumatic
Attachment
quick
Configuration
straight
Material
stainless steel
Other characteristics
security, high-flow, for chemical applications, automatic lock, clean-break, all-fluid
Diameter

5 mm, 9 mm, 12 mm, 25 mm, 50 mm (0.197 in)

Operating pressure

64 bar (928.24 psi)

Description

Clean-break safety coupling with easy-to-clean ball face shape; connection almost free of air inclusion, low in leakage when disconnecting. Connectable under pressure, non-squirting, high flow rate, automatic lock. Types: BF-005, BF-009, BF-012, BF-025, BF-050 Nominal sizes: 5, 9, 12, 25 and 50 mm Pressure range: up to 64 bar / 928 psi (dependent on diameter) Media: water, steam, solvents, acids, bases, oils, all non-lubricating media Materials: stainless steel 1.4404, 1.4571 or similar Special features: clean-break safety coupling with easy-to-clean ball face shape; connection almost free of air inclusion, disconnection most low in leakage. Connectable under pressure, non-squirting, high flow rate, automatic lock. Nominal sizes 25 and 50 mm with separated locking and valve opening procedure.
