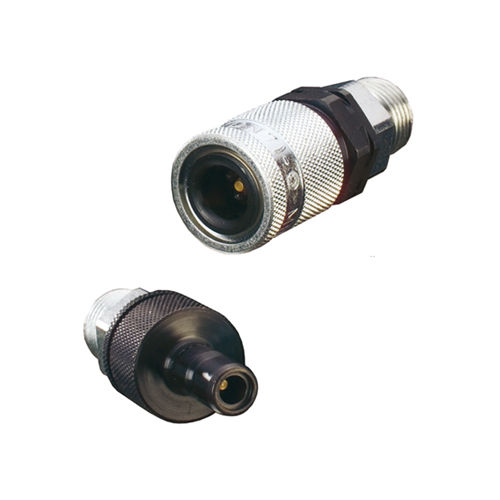

Hydraulic fitting MD series
for compressed airquickstraight

hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product

Characteristics

Applications
hydraulic, for compressed air
Attachment
quick
Configuration
straight
Material
brass, stainless steel, steel
Other characteristics
union
Diameter

Max.: 50 mm (1.969 in)

Min.: 6 mm (0.236 in)

Operating pressure

250 bar (3,625.94 psi)

Description

Quick couplings for various gaseous and fluid media Types: SG-006, MD-006, MD-007, MD-012, MD-019, MD-025, MD-032, MD-050 Nominal bores: 6, 7, 12, 19, 25, 32 and 50 mm Working pressure: up to 250 bar (dependent on nominal bore and material), in part also suitable for vacuum Media: water, compressed air, diverse fluids, fuel, lubricating greases / hydraulic oils Materials: steel and brass with different surface coatings, stainless steel 1.4404 / 1.4571 or similar Special Features / Options: unlocking safety device, many types of connections, ring grips for larger nominal bore
