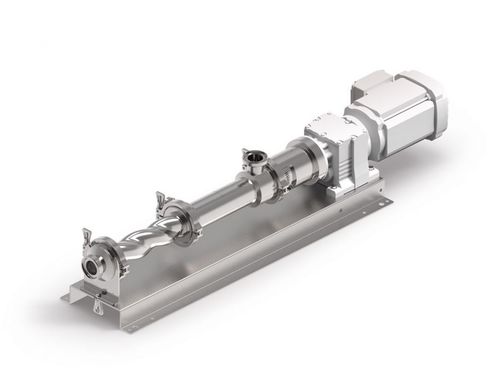

Progressive cavity pump MX-S

for food productselectricself-priming

For demanding hygienic conveying and dosing of aqueous to highly viscous media in the food & beverage-, pharmaceutical and cosmetics industry. Low-impact delivery of products containing solids. CIP and SIP cleaning is possible, the pump is available as a mobile or stationary unit. Benefits and Characteristics optionally with heating or cooling jackets can be used regardless of the direction of rotation Fields of Application For hygienic and gentle conveying and dosing of aqueous to highly viscous media. dosing Technology/Details stators in EvenWall® design (uniform elastomer wall thickness) various geometries and pump sizes external cut surfaces wear parts can be replaced quickly via a separation point opposite the product robust bearing pedestal for high force transduction materials in contact with the product: stainless steel 1.4404 surfaces of the parts in contact with the product: Ra < 0,8 μm modular structure materials with FDA certificate on request ground, electropolished surfaces encapsulated mechanical seal, single or double acting, rinsed by the product flexible drive selection (helical geared motors, hydraulic motors) CIP (Cleaning in Place) discharge flange with self-emptying design double bearing arrangement with tapered roller bearings service-proven sealing systems particularly gentle feeding driven by helical geared motor fully developed, robust universal joint simple, effective cleaning easy cleaning thanks to construction with little dead space
