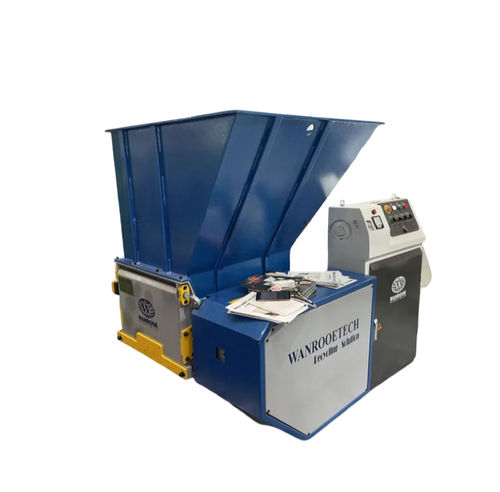

Primary shredder PNDS series

single shaftplasticfor pipes

The PNDS Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper, etc The cutter head is consists of basic shaft and pieces of quadrangle cutter There are four edges which are easy to change V' shaped rotary cutters are fixed on a single shaft The fixed cutter is mounted at an angle in adjacent to the rotary cutter to achieve better cutting. The material is grabbed between V shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process; the evenly cutting; saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also, the knives are very easy to install and remove. Working principle: The motor drives the shaft to make knife rotates in high speed, the material is put to between the knife shaft and fixed knife, the materials are a shredder, the qualified size will discharge from the screen mesh, the oversize material will be sent back for re shredding. The final product size can be adjusted by changing the final product size. Technical Features: 1 . The shredder single shaft for plastic with the big feeding mouth; it can put the big plastic or rubber product freely. 2. The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity. 3. The shredder single shaft for plastic is controlled by PLC system, the blade can rotate in the opposite direction and close automatically if something unexpected happens, with very high safety service
