Double shaft shredder PNSS series

tirefor wastemobile

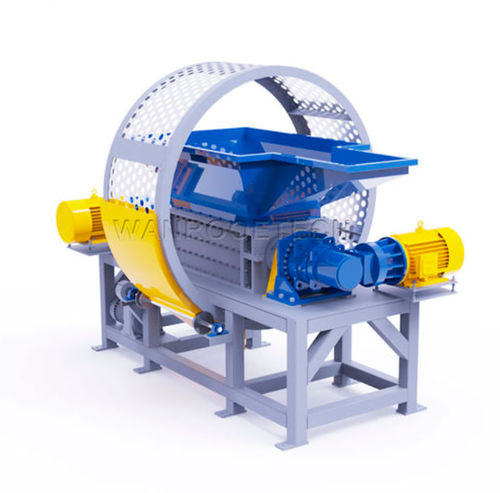

Description: The TDF tire shredding Machine system is designed to produce up to 1.2-10 tons per hour of TDF. TDF systems produce a 25mm to 152mm(1”-6”) rubber chip, which is used as a coal additive for industrial boilers. Many of these facilities are turning to TDF because it burns hotter and cleaner than coal and is more cost effective. Rough shreds can be outputted for use or processed further to remove steel from the rubber resulting in Wire-free TDF.This plant is made of two main parts: double shaft shredder and screen. Technical Features: 1.No polluted water, no waste gas and no waste residuce during production process； 2.Compact structure, small space and easy maintennance； 3.Lower energy consumption and good cost performance of investment； 4.shredder is designed with a powerful engine, long working length and aggressive input,Internal feeding volume bigger than traditional and common single shaft shredder machine； 5.The two cutting rotors powerfully grab the feed material； 6.Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume； 7.Screen is used to make sure the size of the output can meet each customer’s requirement( From 40mm–75mm)； 8.Cutters removal and replacement can be carried out safely and simply. 9.Our tire shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages:High Efficiency,Greater Stability,Compact Size,Higher Torque Density,Cost Effective Precision,High Radial Loads.
