Primary shredder PNGS series

plasticfor pipes

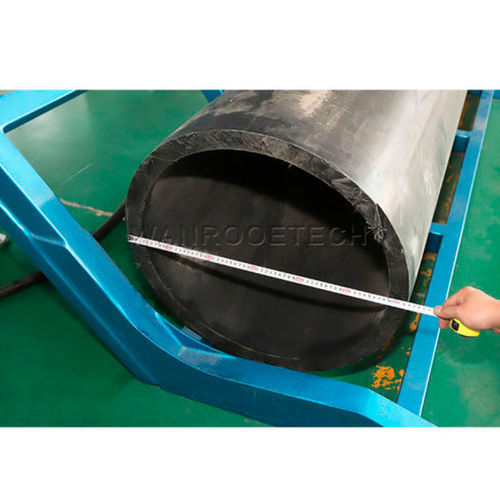

Application: Coils，HDPE pipes，PE-HD pipes，PVC pipes，Oversize pipes (diameter from 1 to 1.5m)，Long pipes (from 1 to 6m)，Fittings and profiles. Description: PNGS series HDPE pipe shredder is suitable for shredding HDPE, PE, PP, PVC pipes and profiles whose diameter is ^ 1200mm and length is ^6000mm. The main focus of the PNGS shredders is the shredding of large-diameter pipes or bundles of Smaller pipes and profiles made from HDPE, PP and PVC. The machines can also be used for Recycling other plastic materials such as large lumps, stacked wheelie bins and pallets, etc. In combination with other WANROOTECH size reduction equipment such as granulators, plastic crushers and plastic pulverizers we are able to provide a complete turn-key HDPE pipe recycling solution. Features： • No pre-cutting of pipe lengths necessary, MAX allows large diameter HDPE, PVC, or PP pipe lengths up to 6000mm; • Process pipes up to 1200 mm diameter • Automatic control giving virtually risk-free operation, manufacturing according to CE standard • Elimination of amperage peaks • High throughput rates • Allows feeding of bundles or nested pipes and profiles • Large diameter rotor (up to 1500 mm) • SIEMENS Motor, BONENG High-Quality oversized Gearbox, SIEMENS PLC controlling system, make sure high performance.
