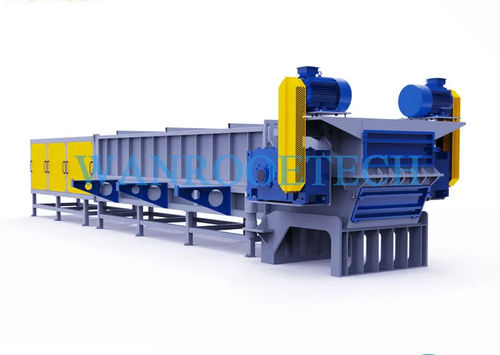

Pipe shredder PNGS series

primarysingle shaftfor plastic waste

Coils,HDPE pipes,PE-HD pipes,PVC pipes,Oversize pipes (diameter from 1 to 1.5m),Long pipes (from 1 to 6m),Fittings and profiles Description: PNGS series HDPE pipe shredder is suitable for shredding HDPE, PE, PP, PVC pipes and profiles whose diameter is ^ 1200mm and length is ^6000mm. The main focus of the PNGS shredders is the shredding of large-diameter pipes or bundles of Smaller pipes and profiles made from HDPE, PP and PVC. The machines can also be used for Recycling other plastic materials such as large lumps, stacked wheelie bins and pallets, etc. The PNGS Series Pipe shredder has the capability of handling large diameter pipes (up to 1200mm dia) without the need for pre-cutting. Since their introduction, they have become the per se standard for pipe shredding and are used worldwide by leading pipe manufacturers. More than 200 installations demonstrate our technological leadership in this market and our continuing innovation is based on market demands and customer feedback. Dependent on pipe diameter, the PNGS rotor diameters and widths range from 800mm up to 1500 mm. The standard hopper accepts pipe lengths of up to 6 m. The combination of advanced controls, low rotor speed and smooth hydraulics create a reliable and easy-to-use system. Working Principle: Put the HDPE pipe material into the feeding trough and then push the HDPE pipe to shred with a hydraulic pushing device. After the shredder, the conveyor transports the shredded material into the crusher for secondary crushing.
