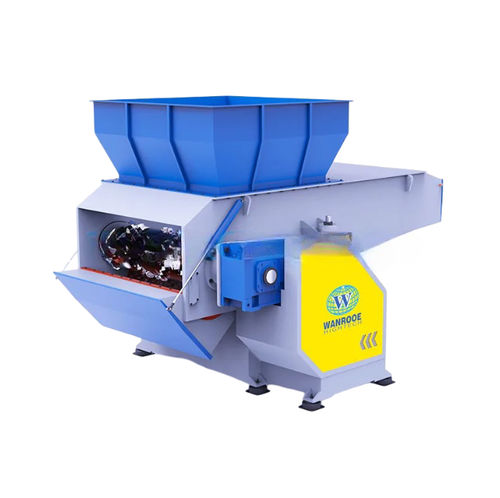

Plastic mill PNDS series

hydraulicfor recycling

PP PE PVC Plastic Purages Block Recycling Single Shaft Shredder Machine uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small sizes. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper, etc. The cutter head is consists of a basic shaft and pieces of quadrangle cutter. There are four edges that are easy to change. ‘V’ shaped rotary cutters are fixed on single shaft. The fixed cutter is mounted at an angle adjacent to the rotary cutter to achieve better cutting. The material is grabbed between ‘V’ shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of ‘V’ shape rotor knives. Also, the knives are very easy to install and remove. Movable Feeding Hopper Plastic pipes are travelling along with the movement of the hydraulic ram and thus are pushed closely to the cutting rotor for thorough and efficient shredding. Heat treated rotor knives Special DC53 steel (hardened) four edges use before the replacement V-cutting rotor design with staggered cutter positioning Wear Resistant Tungsten surface coating for abrasive applications Electric Control Cabinet The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA.
