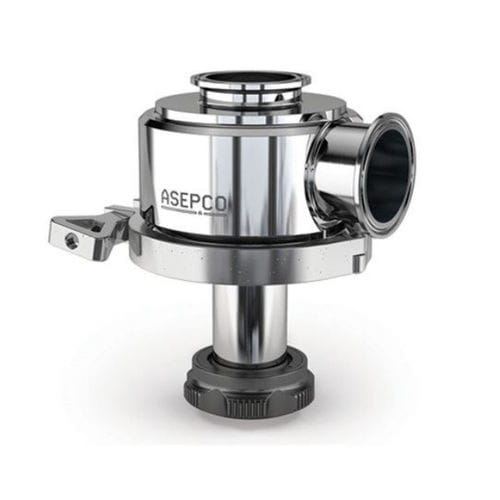

Radial diaphragm valve

radial diaphragm valve
radial diaphragm valve
radial diaphragm valve
Add to favorites
Compare this product


radial diaphragm
micro, alloy
flange, process, hygienic, sanitary, bar
Associated function
Other characteristics
ISO, integral, with tri-clamp connection

Min.: -51 °C (-60 °F)

Max.: 260 °C (500 °F)


17 bar (246.6 psi)


Min.: 0.5 in

Max.: 4 in

Flow rate

Min.: 10 l/min (3 us gal/min)

Max.: 1,143 l/min (302 us gal/min)


ASEPCO Weirless Radial diaphragm process valve 90 degree process valve drains completely in three mounting positions including upside down Fully CIP/SIP capable for efficient cleaning and sterilizing Designed to easily fit into tight piping areas Assemblies with a Tri-Clover(R) Clamp, enabling diaphragm change-outs in under a minute Integral travel stops that never need adjusting Available valve sizes: 0.5″, 1.0″, 1.5″, 2.0″, 3.0″, and 4.0″ Process valve specifications Material316L, AL6XN, Hastelloy, Alloy C-22 and C276, Polypropylene Machined from solid, hot-rolled, bar stock Surface FinishElectropolished: Max 20 micro inch (0.5µm) Ra, Max 15 micro inch (0.375µm) Ra, Max 10 micro inch (0.25µm) Ra Sizes0.5 inch, 1 inch, 1.5 inch, 2 inches, 3 inches, 4 inches Outlet Connections Hygienic clamp & tube end: Sanitary flange and buttweld; Optional Port: Per customer specification Maximum Pressure(valve body pressure only) 10 bar (150psig) Maximum TemperatureVaries from 135C/275F to 260C/500F depending on diaphragm material MarkingEach valve is serialized and marked for full material traceability ISOAll products and procedures are governed by our ISO Quality Assurance Program StandardsBPE, CE-PED, ASME
