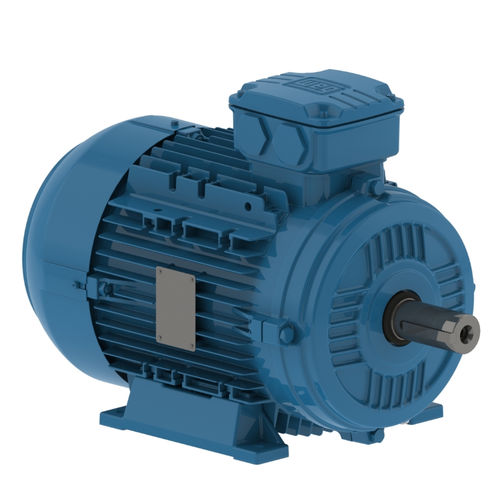

AC motor W21 three-phase400 Vcast iron
Add to favorites
Compare this product
Characteristics
- Type
- AC, three-phase
- Voltage
- 400 V
- Configuration
- cast iron, aluminum frame
- Protection class
- IP55
- Number of poles
- 4-pole, 2-pole, 6-pole, 8-pole
- Power
Max.: 37 kW
(50.31 hp)Min.: 0.1 kW
(0.14 hp)- Torque
Max.: 119.7 Nm
(88.286189 ft.lb)Min.: 0.4 Nm
(0.295025 ft.lb)- Rotational speed
Max.: 2,965 rpm
(18,629.6444 rad.min-1)Min.: 2,870 rpm
(18,032.7418 rad.min-1)- Operating temperature
90 °C
(194 °F)
Description
With aluminum frame and removable feet, this motor is able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.
