Three-phase motor W22
cast ironTEAOIE3

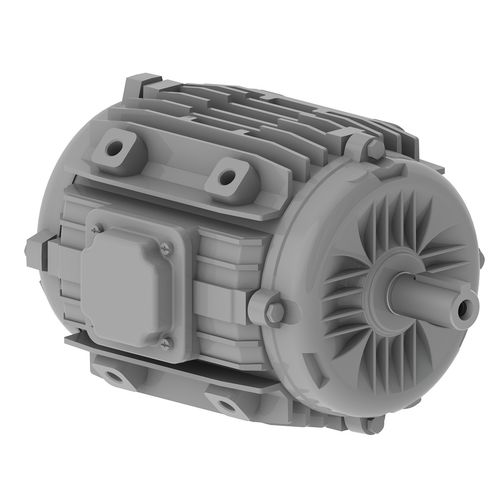

Three-phase motor - W22 - WEG Gear Systems GmbH - cast iron / TEAO / IE3
Three-phase motor - W22 - WEG Gear Systems GmbH - cast iron / TEAO / IE3
Three-phase motor - W22 - WEG Gear Systems GmbH - cast iron / TEAO / IE3 - image - 2
Three-phase motor - W22 - WEG Gear Systems GmbH - cast iron / TEAO / IE3 - image - 3
Three-phase motor - W22 - WEG Gear Systems GmbH - cast iron / TEAO / IE3 - image - 4
Three-phase motor - W22 - WEG Gear Systems GmbH - cast iron / TEAO / IE3 - image - 5
Add to favorites
Compare this product

Characteristics

Type
three-phase
Configuration
cast iron, TEAO
Efficiency classes
IE3, IE2, IE1
Number of poles
4-pole, 2-pole, 6-pole, 8-pole, 4/8 poles
Other characteristics
IEC, emergency, TEFC
Power

Max.: 500 kW
(679.81 hp)

Min.: 0.1 kW
(0.14 hp)

Rotational speed

Max.: 3,000 rpm
(18,849.5559 rad.min-1)

Min.: 750 rpm
(4,712.389 rad.min-1)

Operating temperature

400 °C
(752 °F)

Description

The ideal motor to operate in smoke and heat exhaust systems. Ensures fast smoke and heat extraction, besides delaying the propagation of fire, allowing free access to the emergency exits. It meets the efficiency level according to IEC 60034-30-1. Ventilation System W22 Smoke Extraction motors available in the mounting B3T or B30 (Pad mounted), with the cooling types: TEAO (Totally Enclosed Air Over) TEFC (Totally Enclosed Fan Cooled) Temperature Resistance Terminal block special to withstand high temperatures (optional) Impregnation system of the winding special to withstand high temperatures Special connection leads and high temperatures resistance
