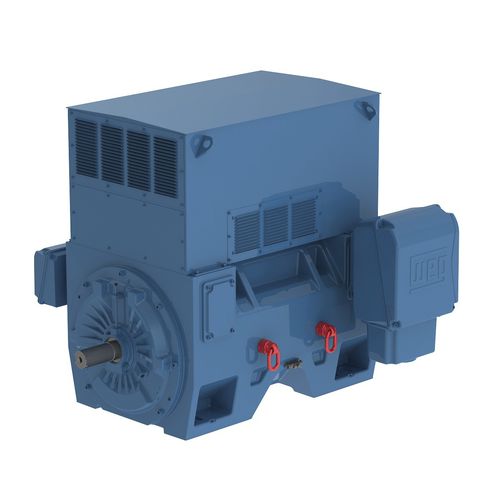

AC motor W60

380 V440 V460 V

The W60 line motors were designed to meet the requirements of industrial applications on compressors, pumps and fans, ensuring high performance and reliability, even under severe operating conditions. Technical Features Frame: NEMA 5010/11 up to 160 (IEC 315 up to 1000) Voltage: 380 up to 13,800 V Frequency: 50 or 60 Hz Cooling method: WPII, TEAAC and TEWAC (IC01, IC611 and IC81W) Benefits Suitable to operate in severe conditions and aggressive environments Flexibility in electrical and mechanical design Suitable for applications with low inrush current and high efficiency Optimized and robust design with excellent power density Versatility that allows different configurations Durability, resistance and robustness Reduced motor weight, allowing for base optimization and reduced installation costs Segments The W60 line motors were designed using the most modern computer programs and mathematical tools for numerical, static, dynamic, thermal and electromagnetic simulations and analyses, thus optimizing the design of each component and their respective interactions. The extensive versatility of the W60 line allows the application of motors in the most diverse segments, such as: oil and gas, mining, power generation, water and wastewater, cement, pulp and paper, sugar and ethanol, steel, among others.
