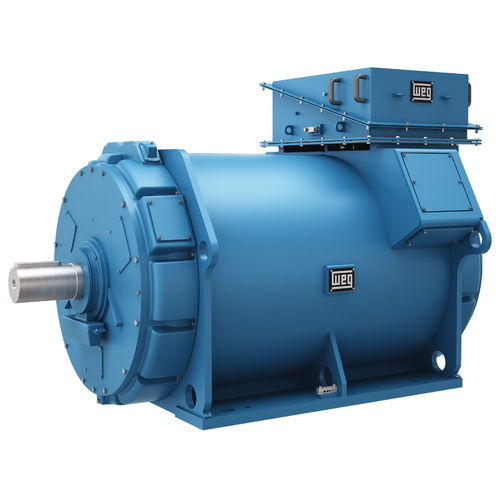

Three-phase motor WGM20

380 V400 V440 V

WGM20 motor is a compact product that was designed to meet several industrial applications. This motor is suitable to operate in reduced-space and aggressive environments that demand low noise level and minimum thermal dissipation to the environment. The product was designed with a cooling system consisting of longitudinal cooling water channels, allowing inspection and cleaning much easier, then reducing maintenance costs. Cooling System The water jacket cooling system consists of a water flow in a “zigzag” circuit throughout the frame, which makes the channel cleaning operation easier. This cooling system has a proper degree of protection suitable for aggressive, reduced-space, or high-temperature environments. The thermal exchange of the motor does not depend on the environment and allows several torque combinations with motor speed. Design Designed with state-of-the-art technology by R&D and engineering specialists with the application of superior raw materials and modern software, the WGM20 motors are suitable for industrial and marine applications. Its modern concept resulted a high performance and reliable product even under the most severe operational conditions. This motor line can be supplied with Marine Certification such as Lloyds, Bureau Veritas, ABS and DNV.
