Three-phase motor W22
TEAOIP66IP56

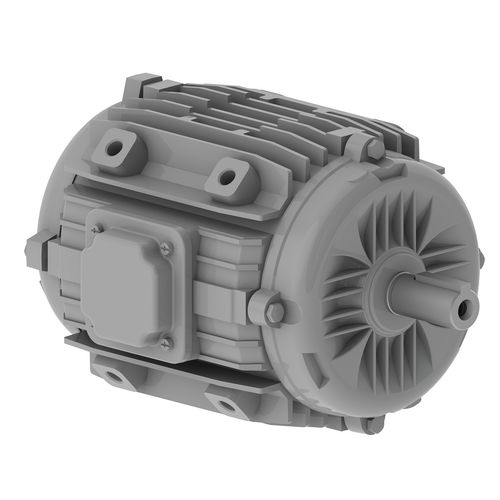

Three-phase motor - W22 - WEG Gear Systems GmbH - TEAO / IP66 / IP56
Three-phase motor - W22 - WEG Gear Systems GmbH - TEAO / IP66 / IP56
Add to favorites
Compare this product

Characteristics

Type
three-phase
Configuration
TEAO
Protection class
IP56, IP66
Number of poles
4-pole, 2-pole, 6-pole, 8-pole
Other characteristics
IEC, emergency, TEFC
Power

Min.: 0.18 kW
(0.24 hp)

Max.: 500 kW
(679.81 hp)

Operating temperature

250 °C
(482 °F)

Description

The ideal motor to operate in smoke and heat exhaust systems. Ensures fast smoke and heat extraction, besides delaying the propagation of fire, allowing free access to the emergency exits. It meets the efficiency level according to IEC 60034-30-1. Ventilation System W22 Smoke Extraction motors available in the mounting B3T or B30 (Pad mounted), with the cooling types: TEAO (Totally Enclosed Air Over) TEFC (Totally Enclosed Fan Cooled) Temperature Resistance Terminal block special to withstand high temperatures (optional) Impregnation system of the winding special to withstand high temperatures Special connection leads and high temperatures resistance
