Three-phase motor W22Xtb
660 V220 V360 V

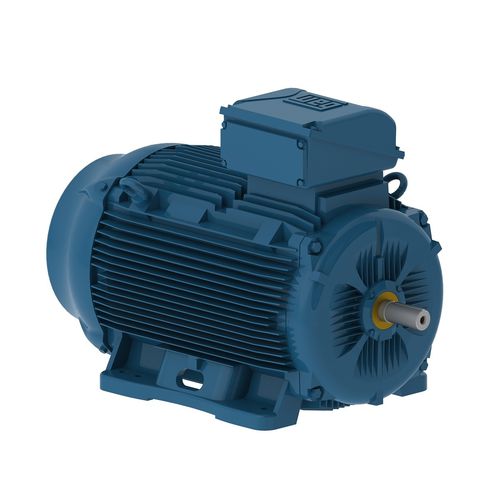

Three-phase motor - W22Xtb - WEG Gear Systems GmbH - 660 V / 220 V / 360 V
Three-phase motor - W22Xtb - WEG Gear Systems GmbH - 660 V / 220 V / 360 V
Add to favorites
Compare this product

Characteristics

Type
three-phase
Voltage
360 V, 220 V, 660 V
Configuration
cast iron
Protection class
IP66
Number of poles
4-pole, 2-pole, 6-pole, 8-pole, 10-pole, 12-pole
Other characteristics
IEC
Power

Max.: 500 kW
(679.81 hp)

Min.: 0.1 kW
(0.14 hp)

Torque

Max.: 2,982 Nm
(2,199.410329 ft.lb)

Min.: 2,820 Nm
(2,079.925261 ft.lb)

Rotational speed

Max.: 3,000 rpm
(18,849.5559 rad.min-1)

Min.: 750 rpm
(4,712.389 rad.min-1)

Operating temperature

125 °C
(257 °F)

Description

The W22Xtb DIP motors were especially developed to maximize safety and quality in explosive atmospheres like Zone 21 and Zone 22, Groups IIIA, IIIB and IIIC, temperature class T125°C. They are an excellent option for application in the processing of grain, cereal, textile fiber, powder paint, polymers, among others. They offer reliability and safety in the presence of combustible dust in suspension or in layers (up to 5 mm). These motors comply with the efficiency level, specified by IEC 60034-30-1.
