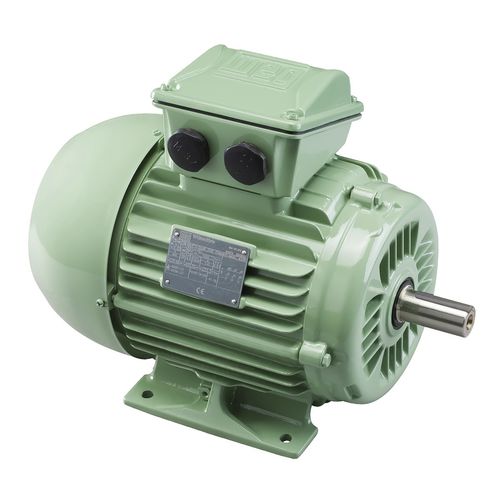

Synchronous motor W22 three-phase690 V400 V
Add to favorites
Compare this product
Characteristics
- Type
- three-phase, synchronous
- Voltage
- 400 V, 690 V
- Configuration
- cast iron, squirrel cage
- Protection class
- IP55
- Efficiency classes
- IE3, IE4, IE5
- Number of poles
- 4-pole, 6-pole
- Other characteristics
- NEMA
- Power
Max.: 370 kW
(503.06 hp)Min.: 15 kW
(20.39 hp)- Torque
Max.: 1,178 Nm
(868.848212 ft.lb)Min.: 47.8 Nm
(35.255471 ft.lb)- Rotational speed
Max.: 1,500 rpm
(9,424.778 rad.min-1)Min.: 1,000 rpm
(6,283.1853 rad.min-1)
Description
The W22 Quattro is a hybrid motor composed of an aluminum squirrel cage rotor and permanent magnets. It allows direct on-line start and ensures synchronous operation with high efficiency in continuous duty. This combination provides an excellent performance and makes the motor ideal for users that consider energy saving a priority.
Catalogs
WG20 Product Brochure
24 Pages
