DC motor W22Xec
three-phaseEC400 V

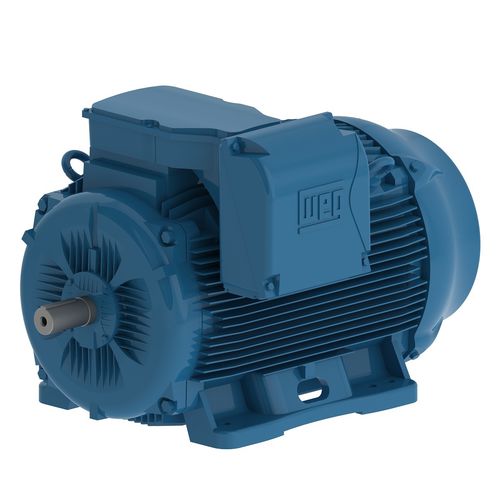

DC motor - W22Xec - WEG Gear Systems GmbH - three-phase / EC / 400 V
DC motor - W22Xec - WEG Gear Systems GmbH - three-phase / EC / 400 V
DC motor - W22Xec - WEG Gear Systems GmbH - three-phase / EC / 400 V - image - 2
DC motor - W22Xec - WEG Gear Systems GmbH - three-phase / EC / 400 V - image - 3
Add to favorites
Compare this product

Characteristics

Type
DC, three-phase, EC
Voltage
400 V, 380 V, 460 V, 440 V, 500 V, 415 V, 480 V, 330 V
Protection class
IP55
Number of poles
4-pole, 2-pole, 6-pole, 8-pole
Other characteristics
IEC
Power

Max.: 450 kW
(611.83 hp)

Min.: 0.1 kW
(0.14 hp)

Rotational speed

Max.: 3,600 rpm
(22,619.4671 rad.min-1)

Min.: 750 rpm
(4,712.389 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

The W22Xec motor offer safety and reliability for operation in a great variety of applications that require a non-incendive motor (Zone 2 – Ex ec IIC T3 Gc) with Protection by Enclosure (Zone 22 – Ex tc IIIB T125°C Dc). It provides safety and complies with efficiency level specified by IEC 60034-30-1. It meets the requirements of installations where the flammable mixture is not often present, but may present risks.
