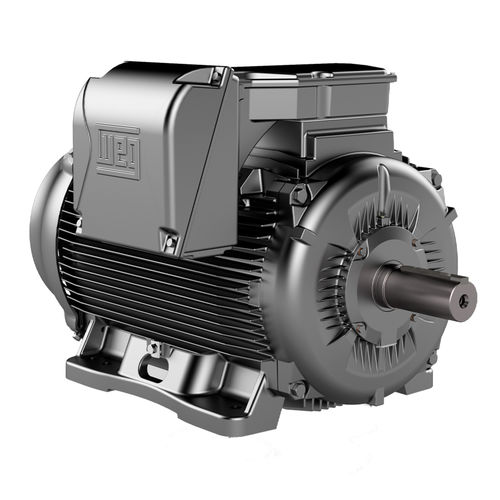

AC motor W23 Sync+

reluctanceIP55IE3

Easily interchangeable, the W23 Sync+ was developed to provide maximum performance at all speeds. It is a perfect combination of technology and sustainability that consumes less energy and reduces CO2 emissions, generating a positive balance for the environment, with excellent cost-benefit. The W23 Sync+ line is at the forefront of efficiency in the industry, meeting the IE5* efficiency standard according to IEC TS 600034-30-2:2016. Impressively, it has reduced losses by 36% compared to IE3 efficiency. The highest efficiency in rotor technology The magnets generate their own magnetic field without the need for induced currents, thus reducing the total losses of the motor. General Characteristics Power: 0.75 to 1250 kW Frame: 80 to 450 H/G Speed: up to 3600 RPM Voltage: 380V Protection Degree: IP55 Insulation: F (80K) Service Factor: 1.0 Bring WEG innovation and sustainability to your application! W23 Sync+ uses a combination of permanent magnets with magnetic reluctance technology that results in the highest efficiency levels on the market. Bearing Type: Ball
