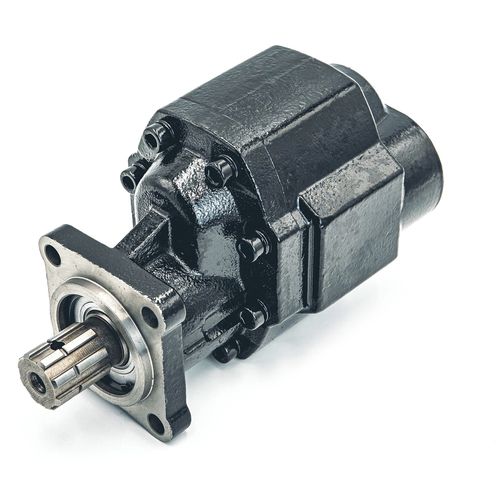

Hydraulic gear pump CBCF-H
hydraulically-operatedpneumaticcast iron

Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 2
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 3
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 4
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 5
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 6
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 7
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 8
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 9
Hydraulic gear pump - CBCF-H - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 10
Add to favorites
Compare this product

Characteristics

Type
gear
Operation
pneumatic, hydraulically-operated
Material
cast iron
Applications
for hydraulic powerpacks, for dumpers, for garbage truck
Other characteristics
compact, high-pressure, oil, high-efficiency, low-noise, standard, rugged, high-performance, rotary
Pressure

22 MPa, 25 MPa

Speed

2,000 rpm, 2,500 rpm
(12,566 rad.min-1, 15,708 rad.min-1)

Weight

19 kg
(41.89 lb)

Description

3. Rated Revolutions 2000r/min 4. Maximum Revolutions 2500r/min 5. Swept volume ：63、80、100ml/r Volumetric efficiency ：≥92% This hydraulic gear pump is design for dump truck.The working rotation direction is double rotation and single rotation, divided into two types: needle roller bearing and oil-free bearing. Needle roller bearing products have stronger anti-pollution ability. The surface of the side plate is plated with a special copper alloy layer, which has enhanced wear resistance. All pumps are tested for pressure and efficiency to ensure normal use after customer installation.

Catalogs

CBCF-H
CBCF-H
1 Pages
