Hydraulic gear pump CB-5
hydraulically-operatedaluminumfor vehicles

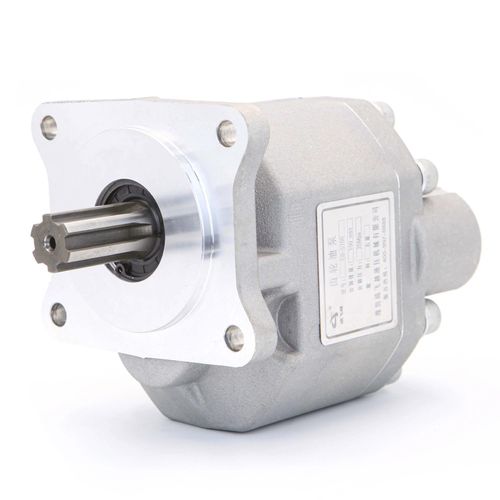

Hydraulic gear pump - CB-5 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / aluminum / for vehicles
Hydraulic gear pump - CB-5 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / aluminum / for vehicles
Hydraulic gear pump - CB-5 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / aluminum / for vehicles - image - 2
Hydraulic gear pump - CB-5 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / aluminum / for vehicles - image - 3
Hydraulic gear pump - CB-5 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / aluminum / for vehicles - image - 4
Hydraulic gear pump - CB-5 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / aluminum / for vehicles - image - 5
Hydraulic gear pump - CB-5 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / aluminum / for vehicles - image - 6
Add to favorites
Compare this product

Characteristics

Type
gear
Operation
hydraulically-operated
Material
aluminum
Applications
for vehicles, for hydraulic powerpacks, for dumpers, for garbage truck
Other characteristics
compact, high-pressure, high-efficiency, low-noise, double-acting, standard, rugged, high-performance, heavy-duty, OEM
Pressure

Min.: 22 MPa

Max.: 25 MPa

Flow rate

Min.: 63 l/min
(16.64 us gal/min)

Max.: 100 l/min
(26.42 us gal/min)

Speed

Min.: 2,000 rpm
(12,566 rad.min-1)

Max.: 2,500 rpm
(15,708 rad.min-1)

Weight

18 kg
(39.68 lb)

Fluid temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

Technical data： 1. Rated Pressure 22Mpa 2. Maximum Pressure 25Mpa 3. Rated Revolutions 2000r/min 4. Maximum Revolutions 2500r/min 5. Swept volume ：63、80、100ml/r Volumetric efficiency ：≥92%
