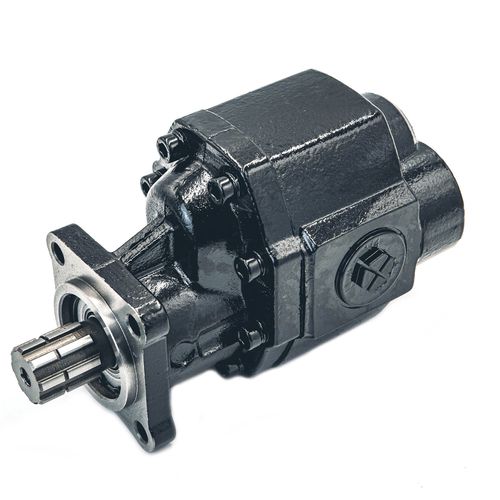

Hydraulic gear pump CBCF-C
hydraulically-operatedcast ironfor vehicles

Hydraulic gear pump - CBCF-C - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / cast iron / for vehicles
Hydraulic gear pump - CBCF-C - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / cast iron / for vehicles
Hydraulic gear pump - CBCF-C - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / cast iron / for vehicles - image - 2
Hydraulic gear pump - CBCF-C - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / cast iron / for vehicles - image - 3
Hydraulic gear pump - CBCF-C - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / cast iron / for vehicles - image - 4
Hydraulic gear pump - CBCF-C - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / cast iron / for vehicles - image - 5
Add to favorites
Compare this product

Characteristics

Type
gear
Operation
hydraulically-operated
Material
cast iron
Applications
for vehicles, for hydraulic powerpacks, for dumpers, for garbage truck
Other characteristics
high-pressure, high-efficiency, double-acting
Pressure

Min.: 22 MPa

Max.: 25 MPa

Flow rate

Min.: 63 l/min
(16.64 us gal/min)

Max.: 100 l/min
(26.42 us gal/min)

Speed

Min.: 2,000 rpm
(12,566 rad.min-1)

Max.: 2,500 rpm
(15,708 rad.min-1)

Weight

20 kg
(44.09 lb)

Fluid temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

This hydraulic gear pump is design for dump truck. The working rotation direction is bi-rotation and uni-rotation, and there are two types: needle roller bearing and oil-free bearing. Needle roller bearing products have stronger anti-pollution ability. The side plate surface is plated with a special copper alloy layer to enhance wear resistance. All pumps are tested for pressure and efficiency to ensure normal use after customer installation. Technical data： 1. Rated Pressure 25Mpa 2. Maximum Pressure 30Mpa 3. Rated Revolutions 800r/min 4. Maximum Revolutions 1300r/min 5. Swept volume ：63、80、100ml/r Volumetric efficiency ：≥92%

Catalogs

CBCF-C
CBCF-C
1 Pages
