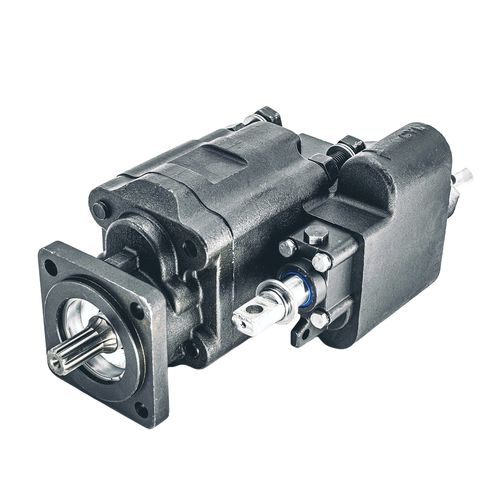

Hydraulic gear pump C102-25-LAShydraulically-operatedpneumaticcast iron
Add to favorites
Compare this product
Characteristics
- Type
- gear
- Operation
- pneumatic, hydraulically-operated
- Material
- cast iron
- Applications
- for hydraulic powerpacks, for dumpers, for garbage truck
- Other characteristics
- compact, high-pressure, high-efficiency, low-noise, double-acting, standard, rugged, high-performance, OEM, rotary
- Pressure
22 MPa, 25 MPa
- Speed
2,200 rpm, 2,500 rpm
(13,823 rad.min-1, 15,708 rad.min-1)
Description
Technical data：
1. Rated Pressure 20Mpa
2. Maximum Pressure 25Mpa
3. Rated Revolutions 2200r/min
4. Maximum Revolutions 2500r/min
5. Swept volume ：100ml/r
Volumetric efficiency ：≥92%
