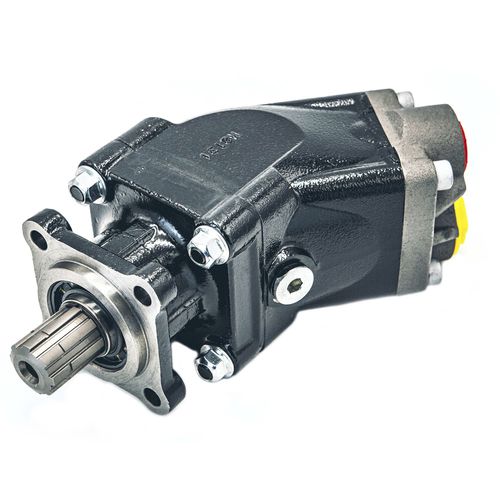

Hydraulic piston pump FR80/110
hydraulically-operatedpneumatic-drivecast iron

Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 2
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 3
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 4
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 5
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 6
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 7
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 8
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 9
Hydraulic piston pump - FR80/110 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 10
Add to favorites
Compare this product

Characteristics

Type
piston
Operation
pneumatic-drive, hydraulically-operated
Material
cast iron
Applications
for vehicles, for hydraulic powerpacks, for dumpers, for garbage truck
Other characteristics
high-pressure, high-efficiency, standard, high-performance, heavy-duty, fixed-displacement, OEM, bent-axis
Pressure

Min.: 35 MPa

Max.: 45 MPa

Flow rate

Min.: 80 l/min
(21.13 us gal/min)

Max.: 100 l/min
(26.42 us gal/min)

Speed

Min.: 1,400 rpm
(8,796 rad.min-1)

Max.: 2,000 rpm
(12,566 rad.min-1)

Weight

25 kg
(55.12 lb)

Fluid temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

Technical data: 1. Rated Pressure 35Mpa 2. Maximum Pressure 45Mpa 3. Rated Revolutions 1400r/min 4. Maximum Revolutions 2000r/min 5. Swept volume :80、100ml/r Volumetric efficiency :≥92% This hydraulic piston pump is design for dump truck.For high-pressure and continuous use conditions, this plunger pump is strongly recommended. These pumps are suitable for continuous pressure 35Mpa and intermittent pressure 45Mpa occasions, efficient and stable.

Catalogs

FR80/110
FR80/110
1 Pages
