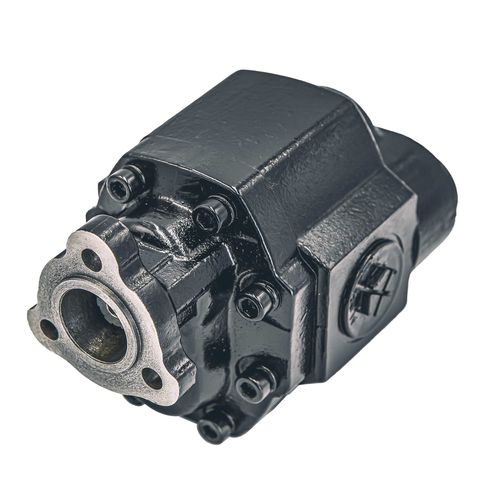

Hydraulic gear pump CBCF-SS
hydraulically-operatedpneumaticcast iron

Hydraulic gear pump - CBCF-SS - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron
Hydraulic gear pump - CBCF-SS - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron
Hydraulic gear pump - CBCF-SS - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 2
Hydraulic gear pump - CBCF-SS - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 3
Hydraulic gear pump - CBCF-SS - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 4
Hydraulic gear pump - CBCF-SS - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic / cast iron - image - 5
Add to favorites
Compare this product

Characteristics

Type
gear
Operation
pneumatic, hydraulically-operated
Material
cast iron
Applications
for hydraulic powerpacks, for dumpers, for garbage truck
Other characteristics
compact, high-pressure, oil, high-efficiency, low-noise, double-acting, standard, rugged, high-performance, double, oil-free
Pressure

22 MPa, 25 MPa

Speed

2,000 rpm, 2,500 rpm
(12,566 rad.min-1, 15,708 rad.min-1)

Description

This hydraulic gear pump is design for dump truck.The working rotation direction is bi-directional, divided into two types: needle bearing and oil-free bearing. Needle bearing products have stronger anti-pollution ability. The surface of the side plate is plated with a special copper alloy layer for enhanced wear resistance. All pumps are tested for pressure and efficiency in two directions to ensure normal use after customer installation. Technical data： 1. Rated Pressure 22Mpa 2. Maximum Pressure 25Mpa 3. Rated Revolutions 2000r/min 4. Maximum Revolutions 2500r/min 5. Swept volume ：63、80、100ml/r Volumetric efficiency ：≥92%

Catalogs

CBCF-SS
CBCF-SS
1 Pages
