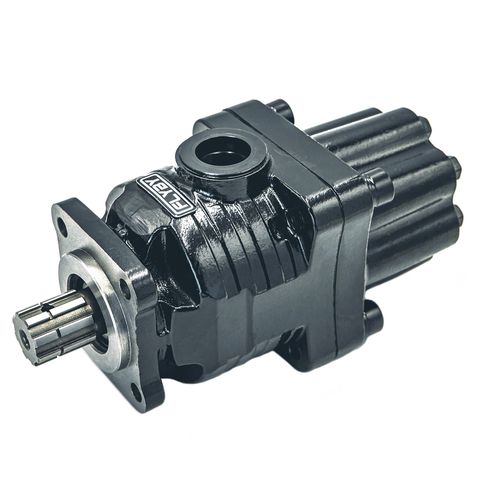

Hydraulic piston pump P7
hydraulically-operatedpneumatic-drivecast iron

Hydraulic piston pump - P7 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron
Hydraulic piston pump - P7 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron
Hydraulic piston pump - P7 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 2
Hydraulic piston pump - P7 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 3
Hydraulic piston pump - P7 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 4
Hydraulic piston pump - P7 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 5
Hydraulic piston pump - P7 - Weifang Chengfeiyue Hydraulic Machinery Co., Ltd. - hydraulically-operated / pneumatic-drive / cast iron - image - 6
Add to favorites
Compare this product

Characteristics

Type
piston
Operation
pneumatic-drive, hydraulically-operated
Material
cast iron
Applications
for vehicles, for hydraulic powerpacks, for dumpers, for garbage truck
Other characteristics
high-pressure, high-efficiency, low-noise, double-acting, high-performance, variable-displacement, heavy-duty, OEM
Pressure

Min.: 25 MPa

Max.: 30 MPa

Flow rate

63 l/min
(16.64 us gal/min)

Speed

Min.: 800 rpm
(5,027 rad.min-1)

Max.: 13,000 rpm
(81,681 rad.min-1)

Weight

20 kg
(44.09 lb)

Fluid temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

This hydraulic piston pump is design for dump truck.It is used instead of a gear pump, suitable for medium-high pressure and low-speed occasions, and more suitable for continuous use conditions; the pump body is made of high-strength cast iron material, resistant to high-pressure impact; 7 plunger structure, stable performance, and higher volumetric efficiency. Technical data: 1. Rated Pressure 25Mpa 2. Maximum Pressure 30Mpa 3. Rated Revolutions 800r/min 4. Maximum Revolutions 1300r/min 5. Swept volume :80、100ml/r Volumetric efficiency :≥92%
