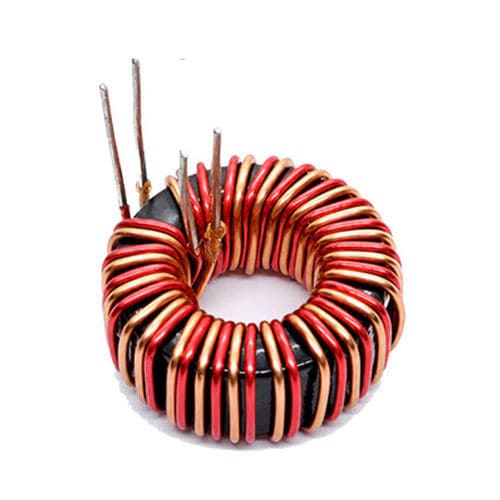

Ferrite core inductor WL65125

ferritetoroidalfor automotive applications

Product Overview

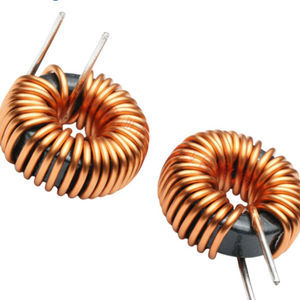

The WL65125 ferrite toroid coil is a toroidal inductor designed for industrial power and signal applications. Constructed with a ferrite toroidal core and enameled copper winding, it offers stable inductance, low magnetic leakage and suitability for high-frequency switching and EMI suppression.

Detailed Description
The component is manufactured by winding insulated copper wire around a closed ferrite ring. The toroidal geometry provides an efficient magnetic path that reduces stray fields and improves coupling. Typical ferrite materials deliver high permeability at switching frequencies with low core losses, making the coil applicable to power electronics and filtering tasks.

How It Works
Current through the winding generates a magnetic flux contained within the toroidal core. This confinement increases inductance per turn and reduces leakage. In switching converters the coil stores and releases energy; in filters it attenuates high-frequency noise while passing desired signals.

Applications

• Switching power supplies and DC–DC converters
• Inverters and renewable-energy power electronics (PV systems, energy storage)
• EMI filters and common-mode chokes in industrial and communication equipment
• Automotive electronics: EV systems, battery management, chargers and motor drives
• RF circuits, signal filtering and antenna matching
• Industrial automation, medical electronics and audio equipment

Advantages & Limitations

• Advantages: compact toroidal geometry, low magnetic leakage, good high-frequency behavior, customizable core and winding to match inductance and current requirements.
• Limitations: winding complexity can increase production cost for custom designs; ferrite cores may saturate under high DC bias; material selection affects losses at target frequencies.

Troubleshooting / Common Issues

• Overheating — verify current rating, wire gauge and thermal conditions.
• Incorrect inductance — confirm turn count, core material and measurement method.
• Magnetic saturation — reduce DC bias or increase core size.
• EMI performance shortfall — review winding layout, grounding and installation.
• Mechanical damage — inspect insulation and winding integrity after handling.

Data sheet (typical parameters)

• Model designation: WL65125
• Core material: ferrite variants (Sendust commonly used as an option)
• Inductance range: 23 µH – 500 mH
• Rated current: 6 A – 50 A
• Saturation current: up to 80 A (depending on size/material)
• Operating frequency: 10 kHz – 300 kHz
• Operating temperature: -40°C to +125°C
• Insulation: enameled copper wire
• Core shape: toroidal (closed magnetic path)

Customization & Manufacturing
OEM/ODM options include core material selection, wire diameter and type, winding method and turns, target inductance, current rating, mounting options and electrical testing to suit application requirements and production volumes.

Caractéristiques / spécifications techniques

• Model designation: WL65125 (product family/model prefix)
• Core materials: ferrite variants (Sendust listed as common option)
• Inductance range: ~23 µH to 500 mH
• Rated current: typical 6 A to 50 A; saturation up to ~80 A depending on core/size
• Operating frequency: ~10 kHz to 300 kHz (material dependent)
• Operating temperature range: -40°C to +125°C
• Insulation: enameled copper winding
• Core shape: toroidal (closed magnetic path)
• Common applications: switching power supplies, DC–DC converters, EMI filters, automotive electronics, inverters, RF and communication systems
